Power Seat Switch

  1. Remove the seat from vehicle. <Ref. to REMOVAL , Front Seat.>
  2. Remove the cover - hinge front seat OUT.
    1. Remove the screws in the rear section of the cover - hinge front seat OUT.
    2. Release the claw in the upper section of the cover - hinge front seat OUT.
    3. Remove the clip, and release the claws in the front section of the cover - hinge front seat OUT.
    4. Disconnect the power seat switch connector, and remove the cover - hinge front seat OUT.
    5. Remove the knob - power seat.
    Fig 1: Removing Power Seat Knob
    G11268878Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the screws to remove the power seat switch assembly.

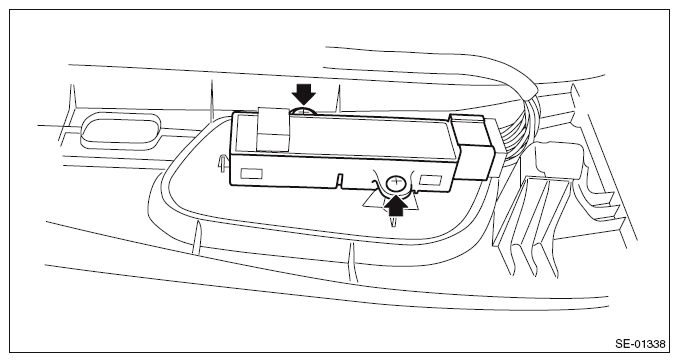

Fig 2: Locating Power Seat Switch Assembly Screws
G09484603Courtesy of SUBARU OF AMERICA, INC.
