Rear Seat

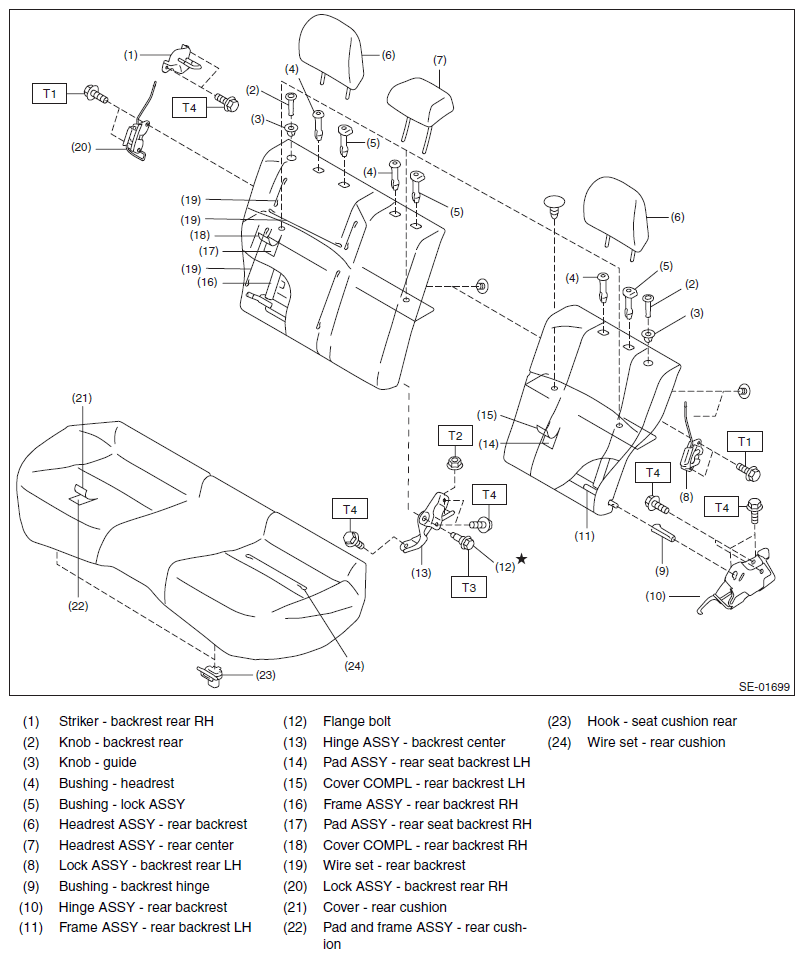

Fig 1: Exploded View Of Rear Seat With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22.5 (2.3, 16.6)

T2: 24.5 (2.5, 18.1)

T3: 28.9 (2.9, 21.3)

T4: 33 (3.4, 24.3)
