Front Seat: Installation

  1. Bring the front seat inside the vehicle.
  2. Connect the connectors located under the front seat.
  3. Install the seat assembly.
    CAUTION:
    • The front seat mounting bolts differ between the front mounting points and the rear mounting points. When installing the front seat, make sure that you are using correct bolts at correct positions.
    • Tighten the slide rail assembly installing bolts in the order as shown in the figure, in several steps by gradually increasing the torque until they reach the specified torque.

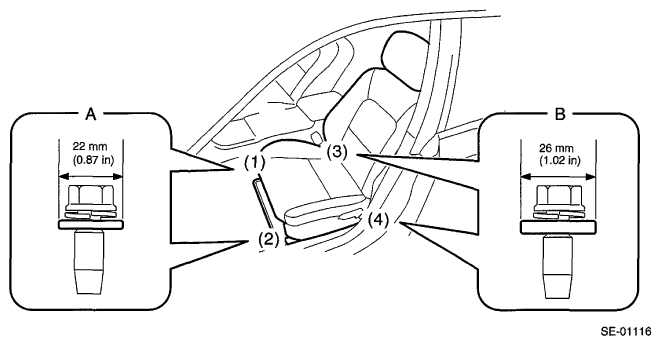

    Fig 1: Slide Rail Assembly Bolts Installation Tightening Sequence
    G06653334Courtesy of SUBARU OF AMERICA, INC.
    • Front (bolt A): Washer diameter 22 mm (0.87 in)
    • Rear (bolt B): Washer diameter 26 mm (1.02 in)

    Tightening torque:

    Front seat assembly: 53 N.m (5.4 kgf-m, 39.1 ft-lb)

  4. Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
  5. Install the headrest assembly - front.
