Front Hood Lock Assembly: Adjustment

Remove the clips at the cover UPR - front and lock assembly - front hood.
NOTE: After adjusting the lock assembly - front hood, dispose the clips since they are no longer needed.
The clips cannot be inserted because the clip holes become smaller due to adjustment.

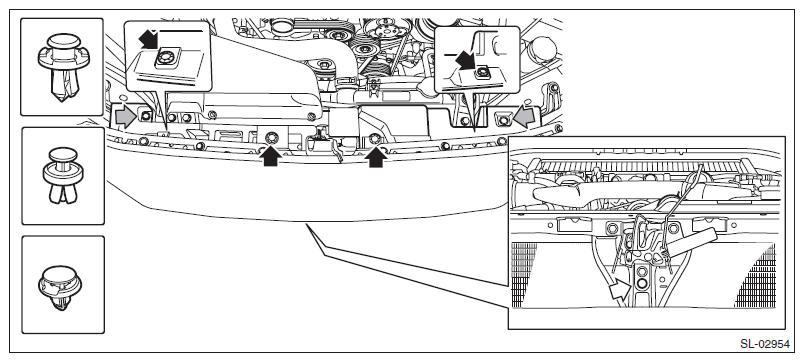

Fig 1: Locating Front Hood Lock Assembly Clips
Courtesy of SUBARU OF AMERICA, INC.

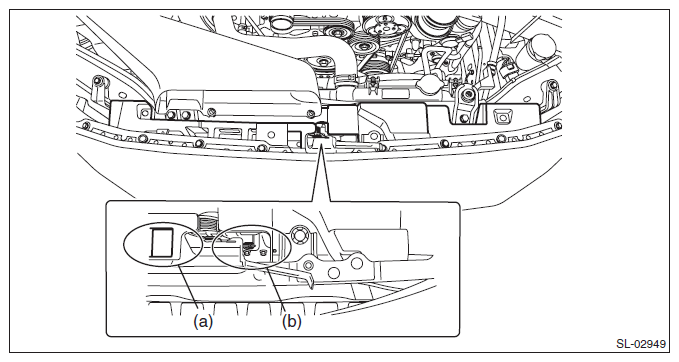

Using the ST, make adjustment by loosening the bolt at upper left through the opening (a) of the cover UPR - front, and loosening the bolts at upper right and lower side through the opening (b).

CAUTION:

NOTE: Adjustment range of the lock assembly - front hood becomes 0±1 mm (0±0.04 in).

Preparation tool:

ST: WRENCH COMPL (499987400)

Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 2: Front Hood Lock Assembly Dimension

Courtesy of SUBARU OF AMERICA, INC.

Calculation formula

T = L/(100 mm (3.94 in)+L) x 33 N.m (3.4 kgf-m, 24.3 ft-lb)

T: Tightening torque

L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

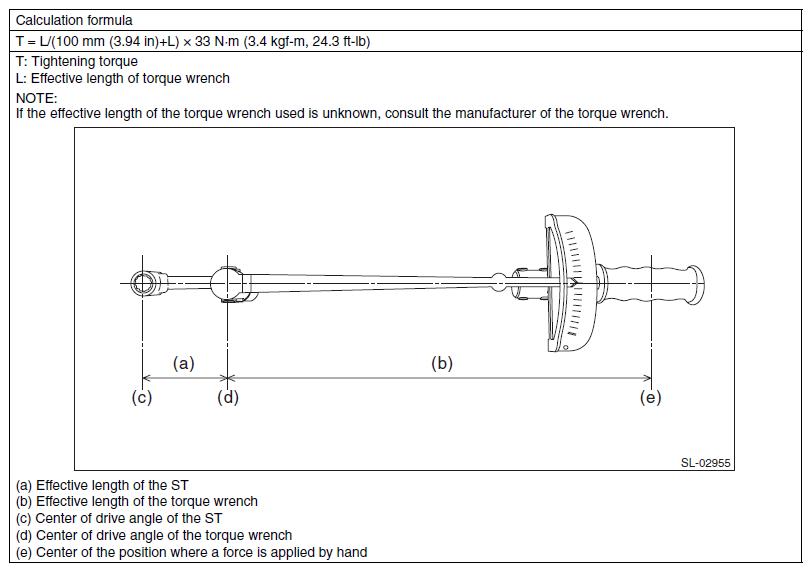

Fig 3: Checking Effective Length Of Torque Wrench

Courtesy of SUBARU OF AMERICA, INC.
