Relay and Fuse: Location

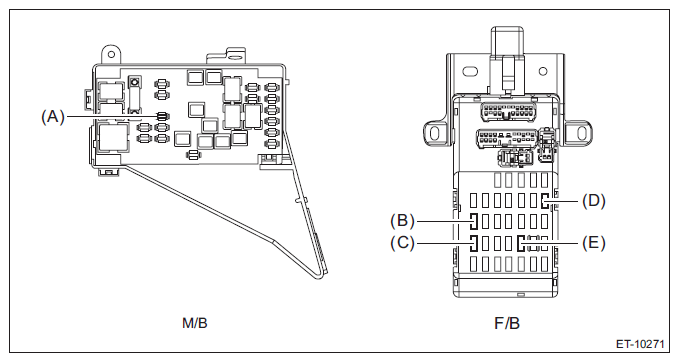

Fig 1: Vehicle Relay And Fuse Location

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box

Fuse 25 A (audio amplifier)

(A)

Relay & fuse box

Fuse 20 A (rear accessory power supply socket)

(B)

Fuse 10 A (front accessory power supply socket)

(C)

Fuse 15 A (data communication module⁽¹⁾)

(D)

Fuse 10 A (audio, navigation unit, external connection terminal, audio amplifier, data communication module⁽¹⁾)

(E)

⁽¹⁾	Model with telematics

NOTE: For other related fuses, refer to the wiring diagram. <Ref. to Power Supply Circuit .>
