Power Amplifier: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the rear seat cushion assembly. <Ref. to REMOVAL , Rear Seat.>
  3. Remove the trim panel - rear pillar UPR and the trim panel - rear pillar LWR. <Ref. to REMOVAL , Rear Quarter Trim.>
  4. Remove the trim panel assembly - rear shelf. <Ref. to REMOVAL , Rear Shelf Trim.>
  5. Remove the power amplifier assembly.
    1. Release the harness clips, and disconnect each connector.
    2. Remove the bolts, release the clips, and then remove the power amplifier assembly.

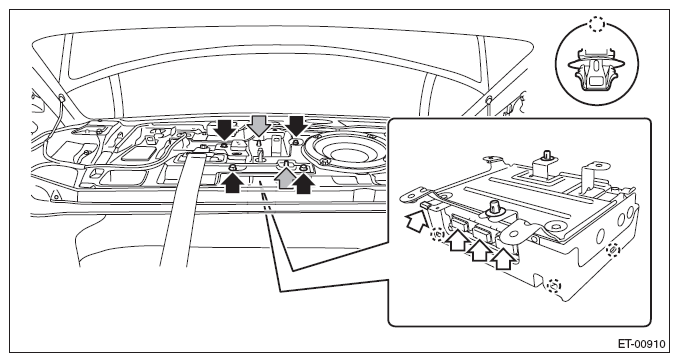

      Fig 1: Removing Power Amplifier
      G10270806Courtesy of SUBARU OF AMERICA, INC.
