Front Speaker: Removal: Tweeter

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the speaker assembly - tweeter.
    1. Release the clips and claws, then detach the grille speaker side.
      NOTE: Remove the grille speaker side by using a plastic remover.
    2. Remove the screws.

      Preparation tool:

      Stubby screwdriver

    3. Disconnect the connector and remove the speaker assembly - tweeter.

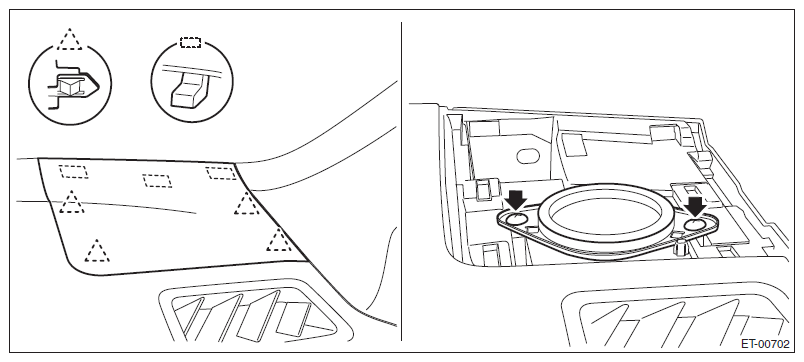

      Fig 1: Locating Tweeter Screws And Claws
      G08316586Courtesy of SUBARU OF AMERICA, INC.
