Multi-function Display (MFD) System: Wiring Diagram

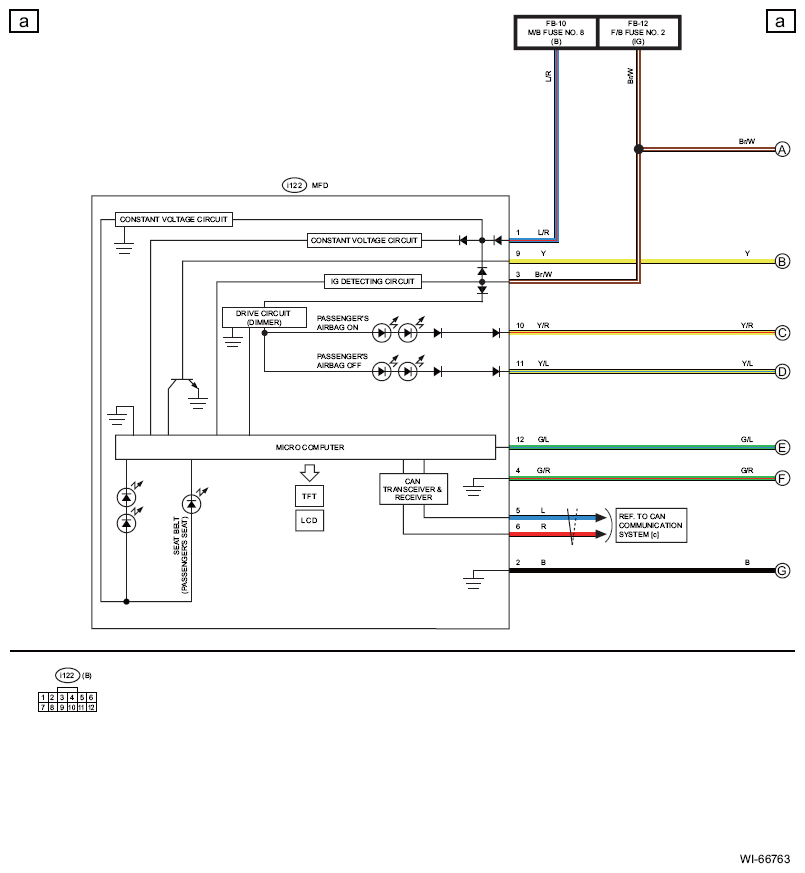

Fig 1: Multi-Function Display (MFD) System Wiring Diagram (A)
G11582075Courtesy of SUBARU OF AMERICA, INC.

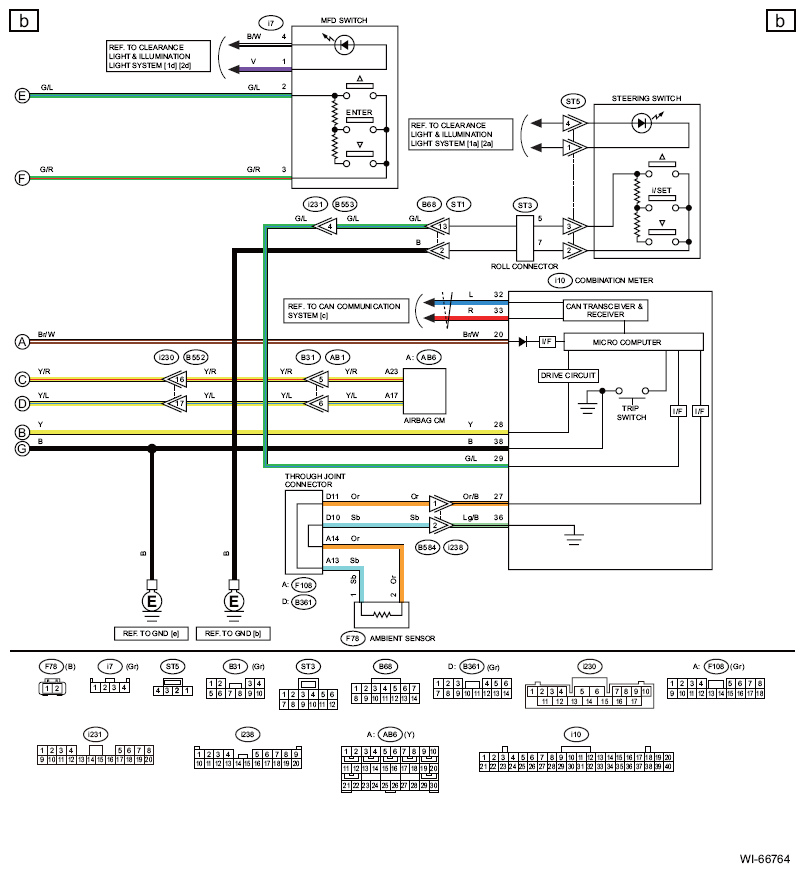

Fig 2: Multi-Function Display (MFD) System Wiring Diagram (B)
G11582076Courtesy of SUBARU OF AMERICA, INC.
