Solenoid Unit

WARNING: This page is about a different variant/trim than selected.

Remove the AT select lever. <Ref. to REMOVAL , Select Lever.>
Remove the spacer and gasket. <Ref. to DISASSEMBLY , Select Lever.>
Using a flat tip screwdriver with a thin tip, remove the harness connector.

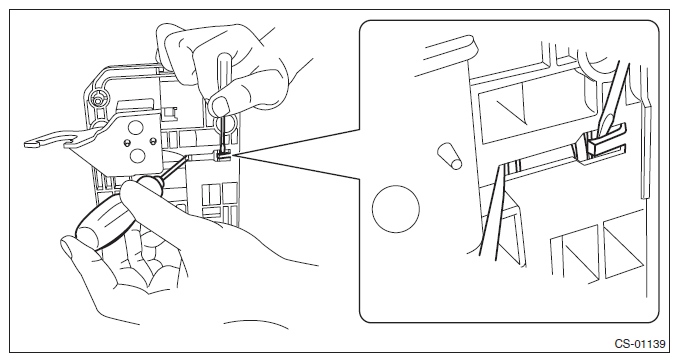

Fig 1: Removing Harness Connector
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw with a flat tip screwdriver with a thin tip and remove the solenoid unit.

Fig 2: Raising Claw With Flat Tip Screwdriver With Thin Tip
Courtesy of SUBARU OF AMERICA, INC.
Remove the terminal of the solenoid unit using a flat tip precision screwdriver with a tip width of 1.3 mm (0.05 in) or less, KTC connector terminal tool ECC-1T or equivalent.

Fig 3: Removing Terminal Of Solenoid Unit Using Flat Tip Precision Screwdriver With Tip Width

Courtesy of SUBARU OF AMERICA, INC.
