Transfer Clutch Pressure Test: Inspection
WARNING: This page is about a different variant/trim than selected.
- Lift up the vehicle.
- Remove the test plug.

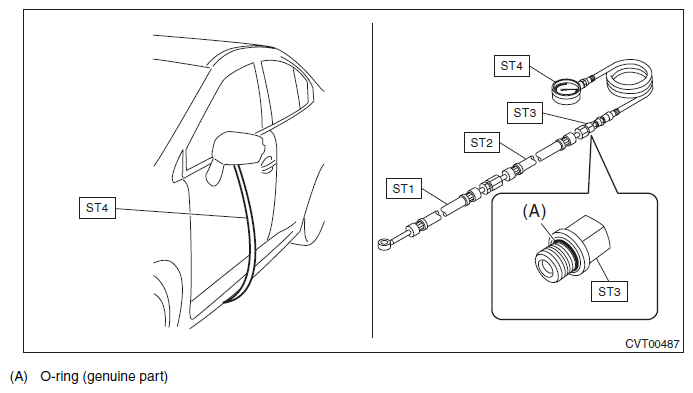

- Set the ST1, ST2, ST3 and ST4 to the transmission.CAUTION: Be careful when setting tools so that the hoses do not touch the exhaust pipes.NOTE:

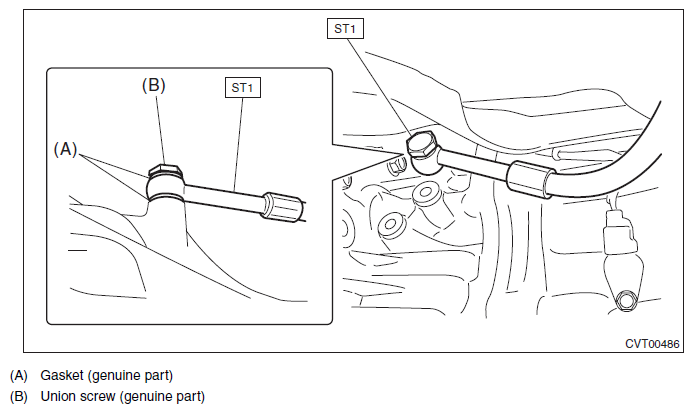

- Use ST1 ADAPTER HOSE B with genuine union screw (Part No. 801914010) and gasket (Part No. 803914060) attached.
- Use ST3 PRESSURE GAUGE ADAPTER with genuine O-ring (Part No. 806911080) attached.
ST1 34099AC020 ADAPTER HOSE B
ST2 34099AC010 ADAPTER HOSE A
ST3 18681AA000 PRESSURE GAUGE ADAPTER
ST4 498575400 OIL PRESSURE GAUGE ASSY
- Lower the vehicle.
- Connect the Subaru Select Monitor to the data link connector and read the current data.
- Check the transfer clutch pressure as in secondary pressure (line pressure) test. <Ref. to
SECONDARY PRESSURE (LINE PRESSURE) TEST .>NOTE: If oil pressure is not produced or it does not change, the control valve body may be malfunctioning.
Range position ON Duty ratio (%) Accelerator pedal opening angle (%) Standard transfer clutch pressure kPa (kgf/cm2 , psi) D 95 - 100 Fully opened (100) 1, 000 - 1, 200 (10.2 - 12.2, 145 - 174) 60 Adjust ON Duty ratio to 60%. 400 - 700 (4.1 - 7.1, 58 - 102) 0 Fully closed (0) - N or P 0 Fully closed (0) 0 - Lift up the vehicle.
- Remove the ST.
- Install the test plug using ST1 and ST2.NOTE:
- Use new O-rings.
- Apply CVTF to the O-rings.
- Tighten the test plug while directly aligning ST2 and torque wrench.
ST1 18270AA040 SOCKET
ST2 73099SG000 SPECIAL TOOL CONDENSER
Using the following formula, calculate the tightening torque for a torque wrench.
T2 = L2/(L1 + L2) x T1
T1: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
L1: ST2 length 0.1 m (3.94 in) (a)
L2: Torque wrench length (b) m (in)
[Required torque setting]
T2: Tightening torque: N.m (kgf-m, ft-lb)
- Lower the vehicle.
