Diagnostic Method

Detect the trouble by calculating the time from the beginning of the fuel cut to the beginning of the rear oxygen sensor voltage starting to drop.

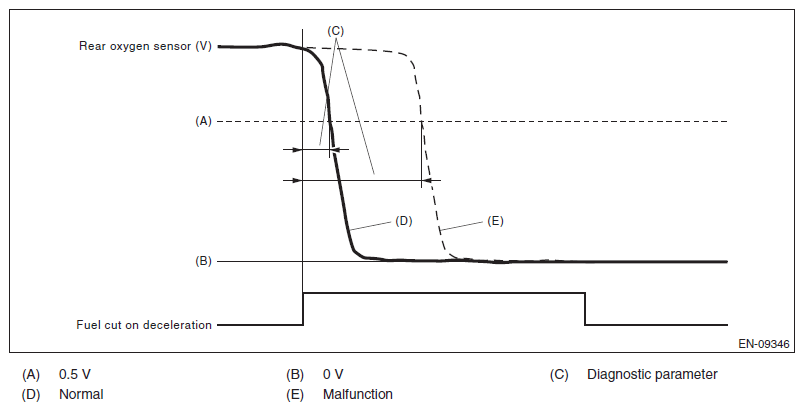

Fig 1: Diagnostic Method For Rear Oxygen Sensor Output Voltage

Courtesy of SUBARU OF AMERICA, INC.

Judge as NG when the following conditions are established.

MALFUNCTION CRITERIA

Malfunction Criteria	Threshold Value
Time when rear oxygen sensor voltage changed to 0.5 V after the fuel cut started	> 4000 ms

Time Needed for Diagnosis: 5 seconds

Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
