Multi-Function Display Switch

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the center grille assembly. Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille.
  3. Release the claws and remove the switch - multi-function display.

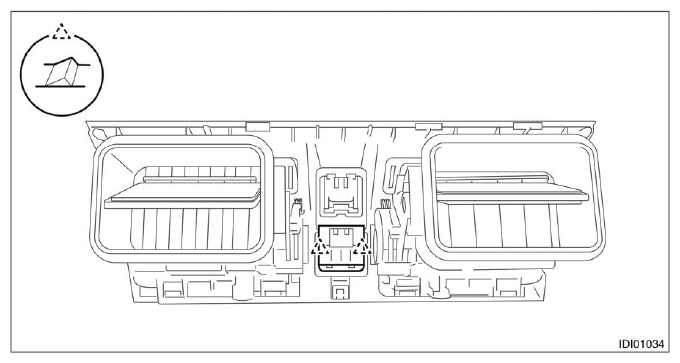

Fig 1: Multi-Function Display Switch Claws Location
G10298804Courtesy of SUBARU OF AMERICA, INC.
