Multi-Function Display Switch

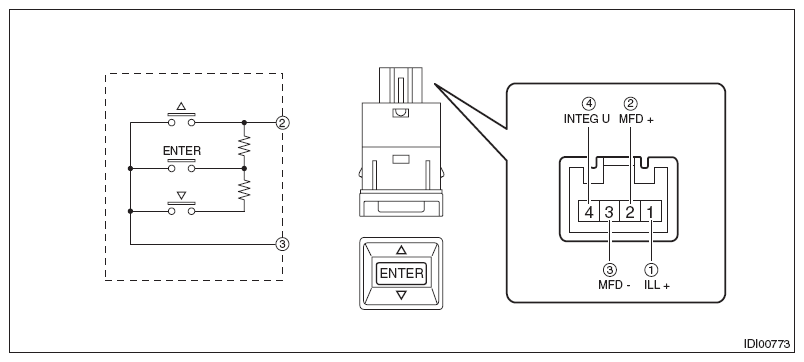

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard 2 - 3 (UP) ENTER, (DOWN) All OFF Approx. 1 MΩ or more (UP) ON Less than 1 Ω ENTER ON Approx. 1, 000 Ω (DOWN) ON Approx. 3, 670 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.
Terminal No. Inspection conditions Specification 4 (+) - 1 (-) Apply battery voltage. Light ON - Replace the switch - multi-function display if it is found defective.
