Generator Bracket

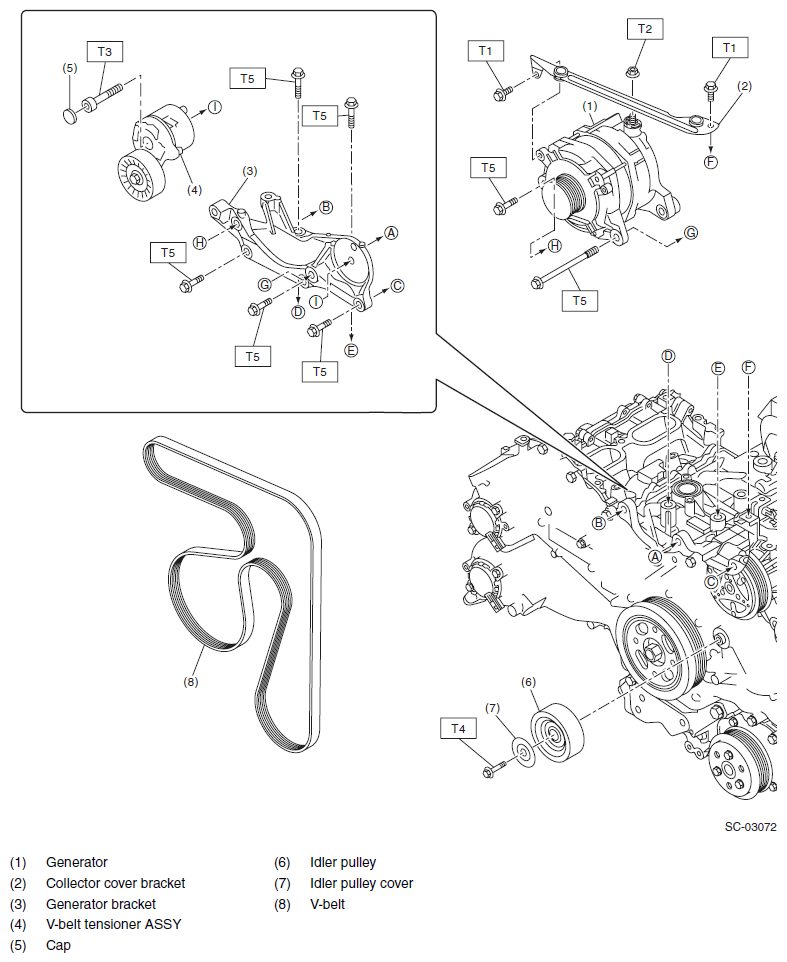

Fig 1: Exploded View Of Generator Bracket

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 15 (1.5, 11.1)

T3: 25 (2.5, 18.4)

T4: 36 (3.7, 26.6)

T5: Ref. to  INSTALLATION  , Generator.
