Vehicle Dynamics Control (VDC) System (Service Information)
>>
VDC Sequence Control
>>
Operation
>>
Conditions For VDC Sequence Control
Conditions For VDC Sequence Control
NOTE:
The control operation starts at point A.

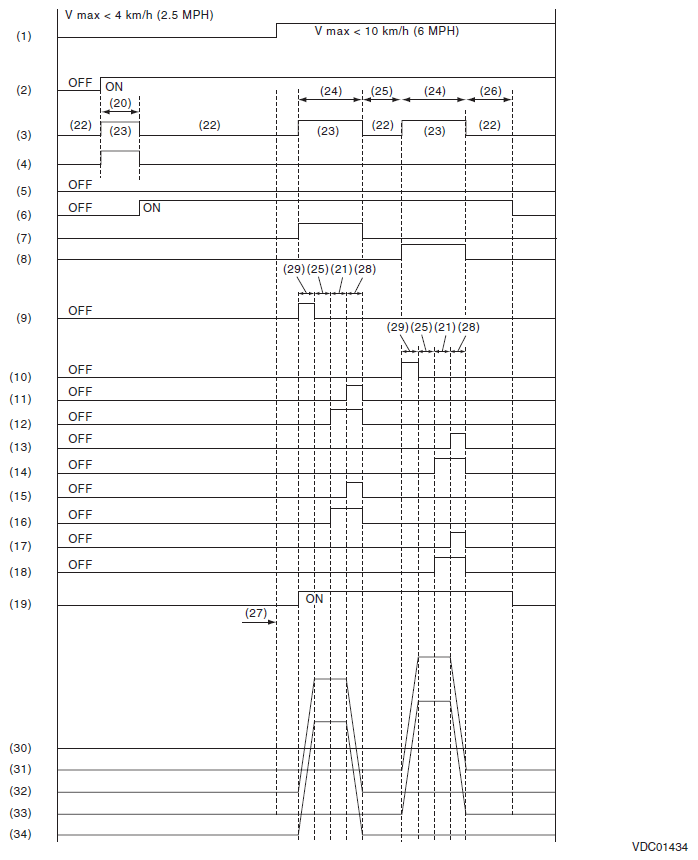

Fig 1: VDC Sequence Control On/Off Pattern (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

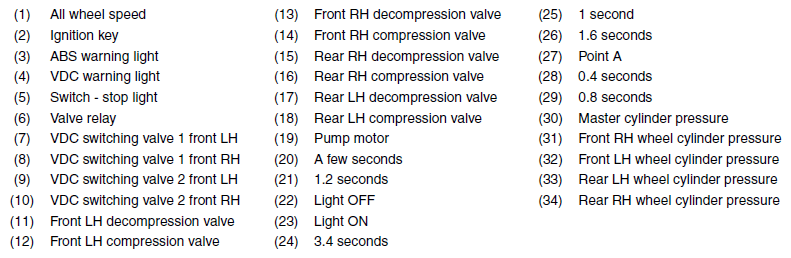

Fig 2: VDC Sequence Control On/Off Pattern (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
