ABS Sequence Control
>>
Operation
>>
Conditions For Abs Sequence Control
Conditions For Abs Sequence Control
NOTE:
The control operation starts at point A.

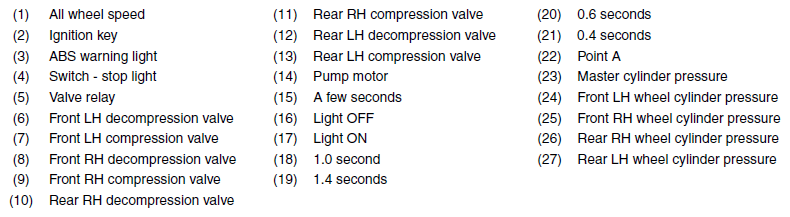

Fig 1: ABS Sequence Control On/Off Pattern (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

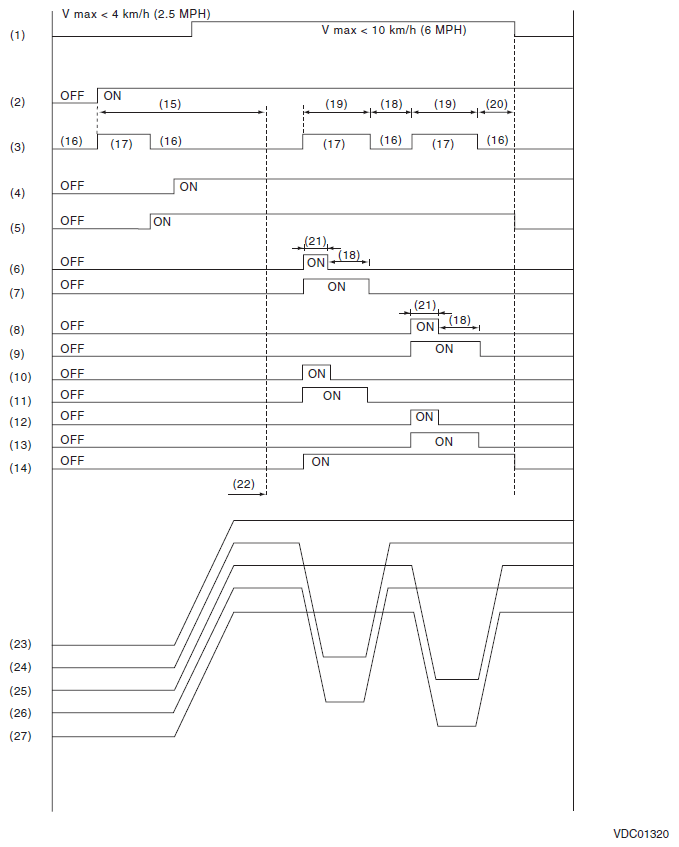

Fig 2: ABS Sequence Control On/Off Pattern (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
