DTC C1411 Electrical Control Module

DTC DETECTING CONDITION:

• Judge as malfunction when ECM internal malfunction is detected.
• This malfunction is stored if the fluid pressure request from the electronic parking brake does not operate.

TROUBLE SYMPTOM:

• ABS does not operate sometimes.
• EBD does not operate sometimes.
• VDC does not operate.
• Hill start assist does not operate. (Models without EyeSight)
• Hill hold does not function. (Models with EyeSight)
• EyeSight does not operate. (Models with EyeSight)

WIRING DIAGRAM:

• Models without EyeSight

  Vehicle dynamics control system <Ref. to WITHOUT EyeSight , WIRING DIAGRAM, Vehicle Dynamics Control System.>

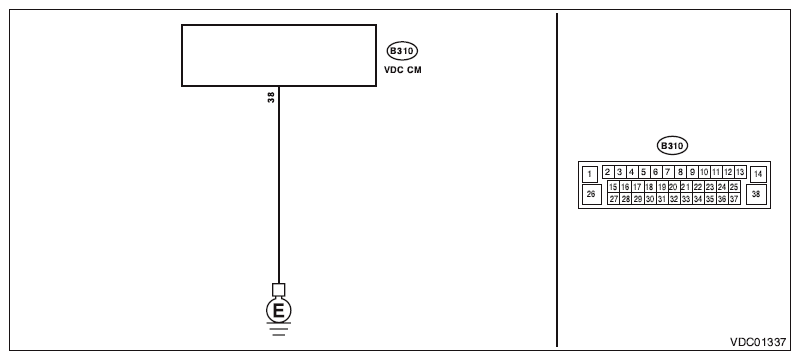

  Fig 1: Electrical Control Module Wiring Diagram (Models Without Eyesight)

  Courtesy of SUBARU OF AMERICA, INC.
• Models with EyeSight

  Vehicle dynamics control system <Ref. to WITH EYESIGHT , WIRING DIAGRAM, Vehicle Dynamics Control System.>

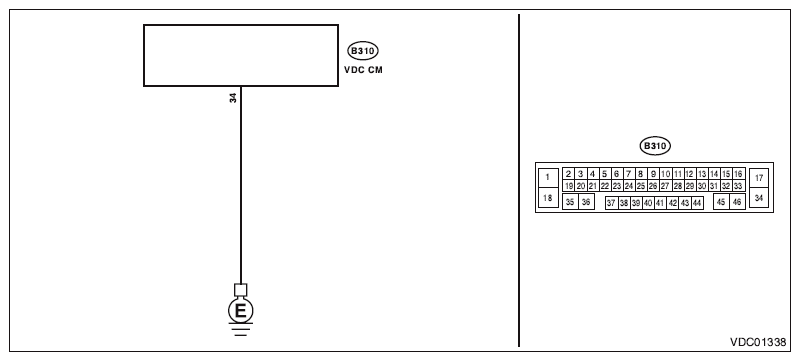

  Fig 2: Electrical Control Module Wiring Diagram (Models With Eyesight)

  Courtesy of SUBARU OF AMERICA, INC.
