Security Control Module: Removal
CAUTION:
- Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>
- Do not allow harness and connectors to interfere or get tangled up with other parts .
- If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. <Ref. to VDC SENSOR MIDPOINT SETTING MODE , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).>
- Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to
BATTERY
, NOTE, Note.>NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Remove the steering wheel. <Ref. to REMOVAL , Steering Wheel.>
- Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
- Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>
- Remove the instrument panel assembly. <Ref. to REMOVAL , Instrument Panel Assembly.>
- Remove the heater and cooling unit assembly. <Ref. to REMOVAL , Heater and Cooling Unit.>

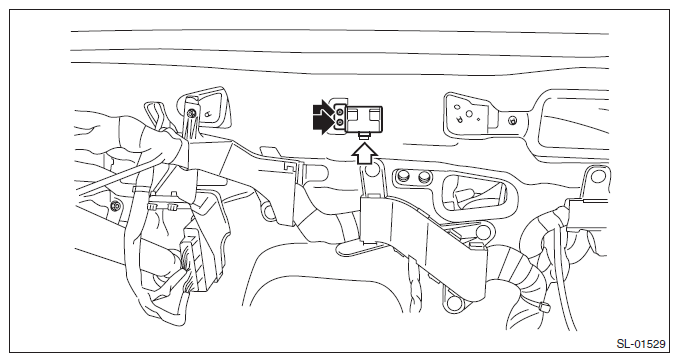

- Remove the security control module.
- Disconnect the connector.
- Remove the nuts, and remove the security control module.
