Keyless Access Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
3. Remove the knee airbag module. <Ref. to REMOVAL , Knee Airbag Module.>
4. Release the lock and remove the fuse holder.

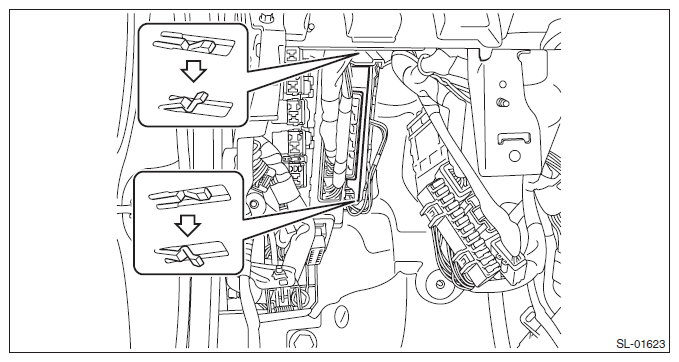

   Fig 1: Locating Fuse Holder (Keyless Access Control Module)

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the relay & fuse box.
   1. Disconnect the connector.
   2. Remove the bolts and nuts, and remove the relay & fuse box.

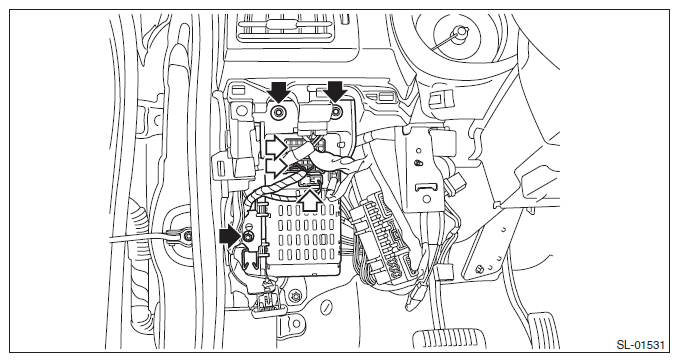

   Fig 2: Locating Relay & Fuse Box Bolts And Nuts

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the keyless access Control Module.
   CAUTION: Be careful to keep water and other foreign materials away from body integrated unit terminals  .
   1. Disconnect the connector.

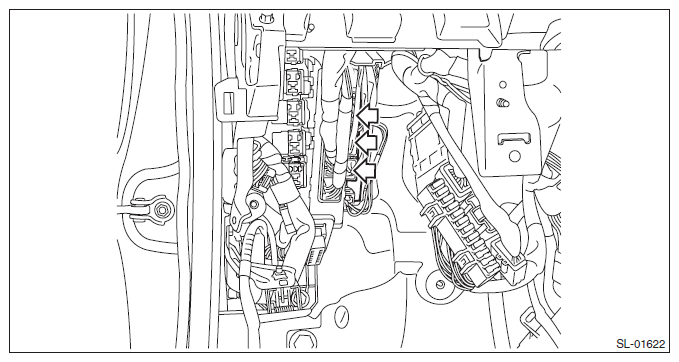

      Fig 3: Locating Keyless Access Controle Module

      Courtesy of SUBARU OF AMERICA, INC.
   2. Release the claws and pull out the keyless access Control Module.

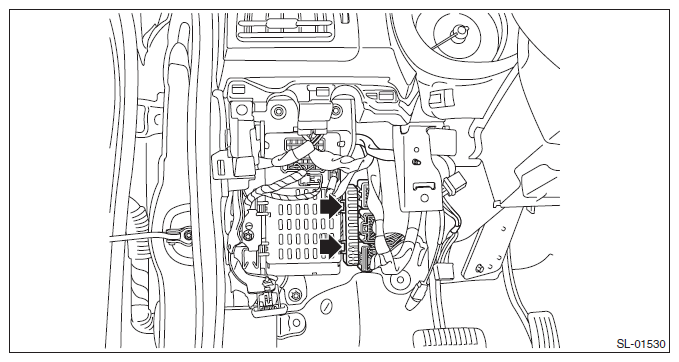

Fig 4: Pulling Out Keyless Access Control Module Claws

Courtesy of SUBARU OF AMERICA, INC.
