System Block Diagram

Main signals used between DCM and relevant Control Module

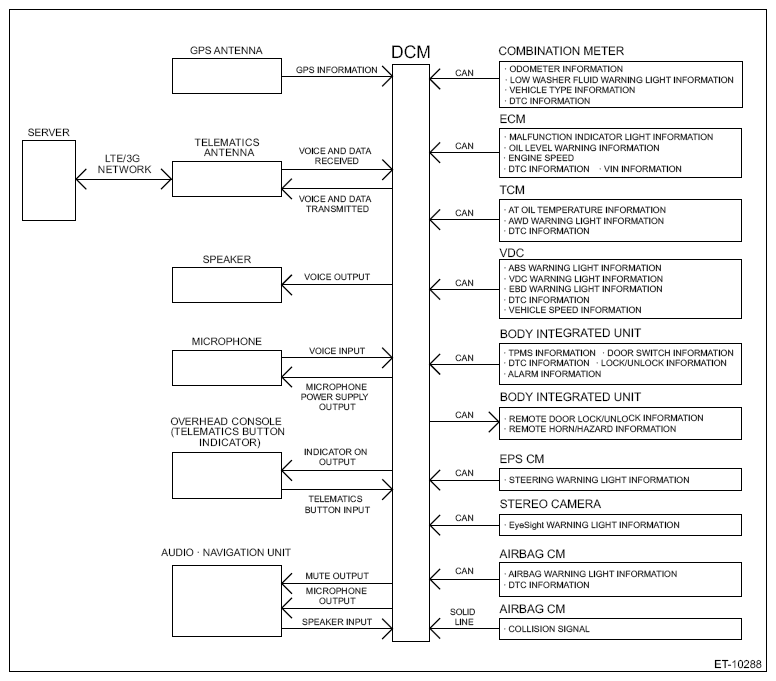

Fig 1: DCM System Block Diagram

G11264483

Courtesy of SUBARU OF AMERICA, INC.
