Data Communication Module

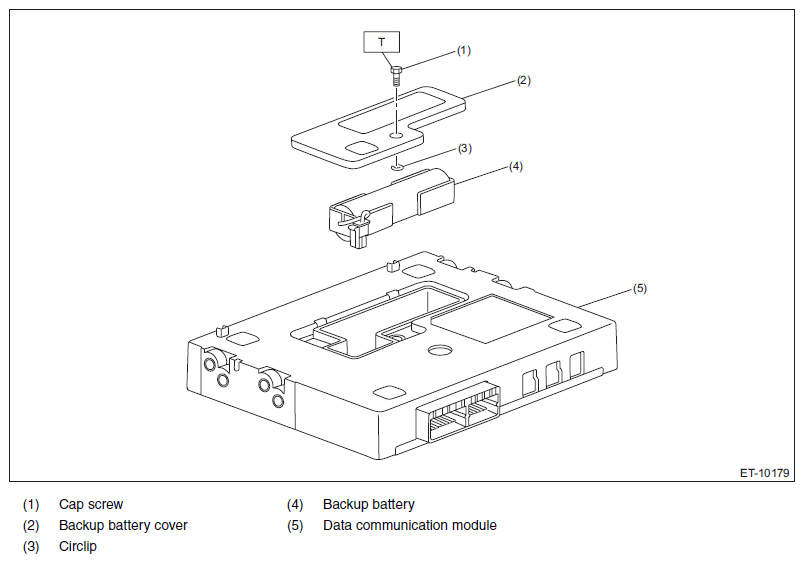

Fig 1: Data Communication Module Component With Torque Specification
G11582594Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 0.3 (0.03, 0.2)
