Starting System & Charging System (H6DO): Generator: Removal

Remove the collector cover.
1. Carefully pull up the rear of collector cover at two positions (A).
2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.

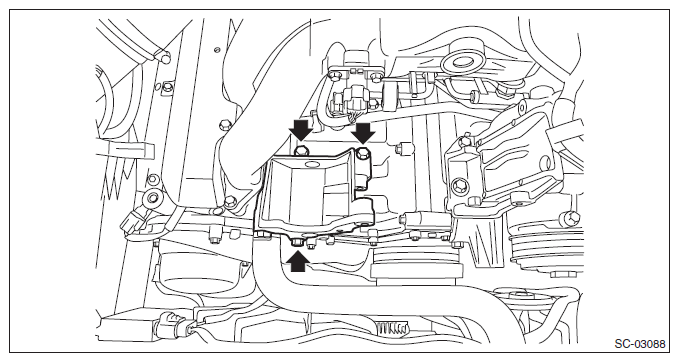

Fig 1: Removing Collector Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Remove the V-belts. Ref. to REMOVAL , V-belt.
Disconnect the connector (A) from the generator, and remove the terminal (B).
Remove the harness cover (C) from the collector cover bracket.
Remove the collector cover bracket.

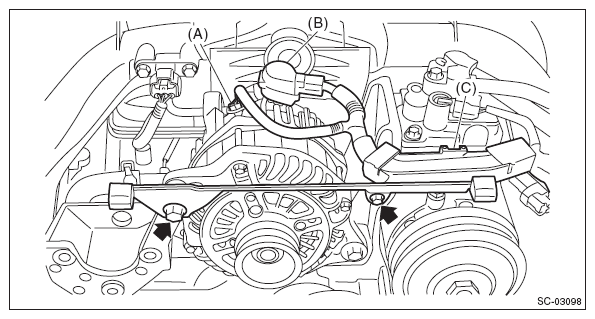

Fig 2: Locating Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the tensioner assembly.

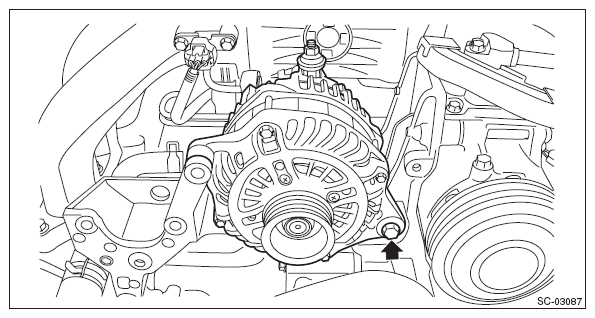

Fig 3: Locating Tensioner Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the A/C compressor bracket.

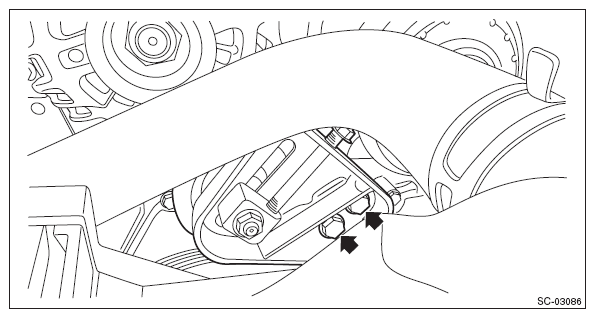

Fig 4: Identifying A/C Compressor Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator bracket from the engine.

Fig 5: Locating Generator Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
