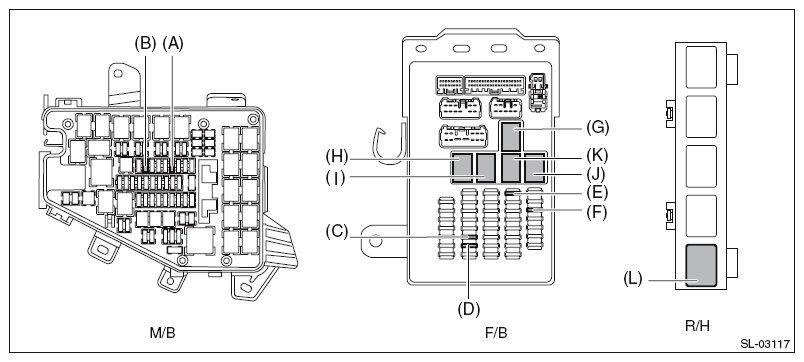

Relay And Fuse: Location
| Main fuse box (M/B) | Fuse 15 A (body integrated unit) | (A) |
| Fuse 15 A (body integrated unit) | (B) | |
| Fuse & relay box (F/B) | Fuse 10 A (body integrated unit, immobilizer antenna) | (C) |
| Fuse 7.5 A (keyless access Control Module) | (D) | |
| Fuse 7.5 A (immobilizer control module) | (E) | |
| Fuse 7.5 A (body integrated unit) | (F) | |
| IG relay 1 | (G) | |
| IG relay 2 | (H) | |
| Starter relay | (I) | |
| Accessory relay 1 | (J) | |
| Accessory relay 2 | (K) | |
| Relay holder (R/H) | Starter cut relay | (L) |
NOTE:
For other related fuses, refer to the wiring diagram. <Ref. to
POWER SUPPLY CIRCUIT
.>
