Rear Gate Opener Button: Removal

NOTE:
  • The button - opener rear gate is integrated with the rear lock button.
  • Open the panel - rear gate before disconnecting the ground terminal from battery sensor.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel - rear gate. <Ref. to REMOVAL , Rear Gate Trim.>
  3. Remove the garnish assembly - rear gate. <Ref. to REMOVAL , Rear Gate Garnish.>
  4. Remove the button - opener rear gate.
    1. Remove the garnish switch bracket from the garnish assembly - rear gate.
    2. While pushing the locks at both ends of the button - opener rear gate with a flat tip screwdriver, remove the button - opener rear gate together with the rear lock button.

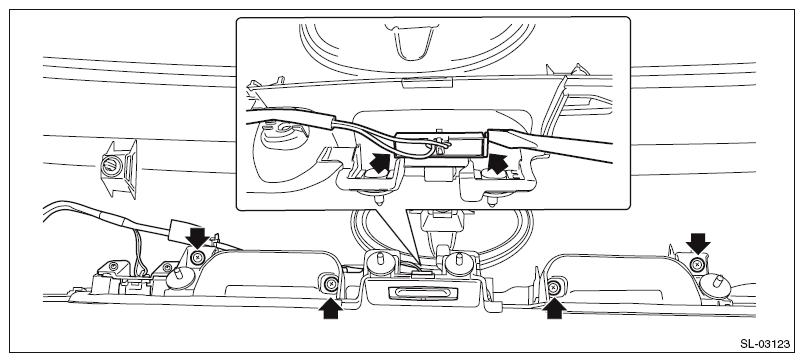

    Fig 1: Removing Rear Gate Opener Button
    G10272926Courtesy of SUBARU OF AMERICA, INC.
