Radiator Fan Control Module (Sub)
- Install the radiator fan control module (sub), and install the bolts securing the radiator fan control module (sub).
Tightening torque:
2.6 N.m (0.3 kgf-m, 1.9 ft-lb)

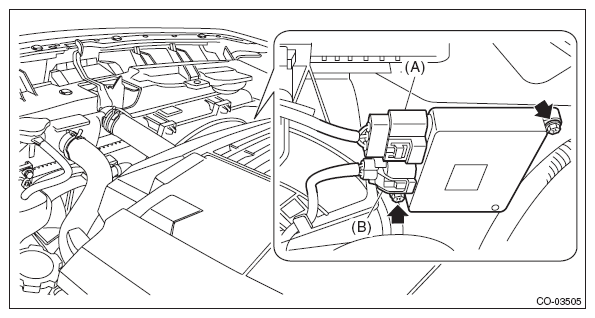

- Connect the radiator fan harness connector (A) and radiator sub fan motor connector (B) to the radiator fan control module (sub).
- Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
- Connect the ground terminal to battery sensor. Ref. to
BATTERYNOTE: Repair Contents.
