Inhibitor Switch: Installation

  1. Install the inhibitor switch to the transmission case temporarily.
    Fig 1: Inhibitor Switch And Inhibitor Harness Connector
    G10218584Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the inhibitor harness connector.
  3. Install the shifter arm and fix with the spring pin.
    NOTE: Use new spring pin.

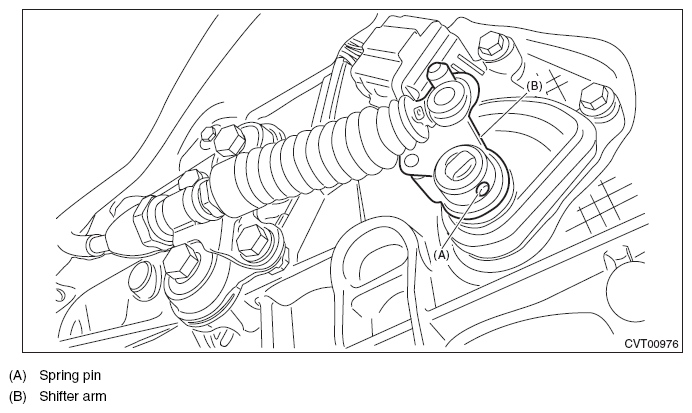

    Fig 2: Spring Pin And Shifter Arm
    G11572687Courtesy of SUBARU OF AMERICA, INC.
  4. Shift the shifter arm to "N" range.
  5. Install the ST vertically in the cutout of shifter arm and the hole of switch body.

    ST 499267300 STOPPER PIN

    Fig 3: Inserting Stopper Pin (499267300) Vertically Into Holes Of Shifter Arm And Switch Body
    G10218581Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the two bolts holding the inhibitor switch.

    Tightening torque:

    5 N.m (0.5 kgf-m, 3.7 ft-lb)

  7. Install the select cable to the shifter arm.
  8. Install the washer and snap pin.

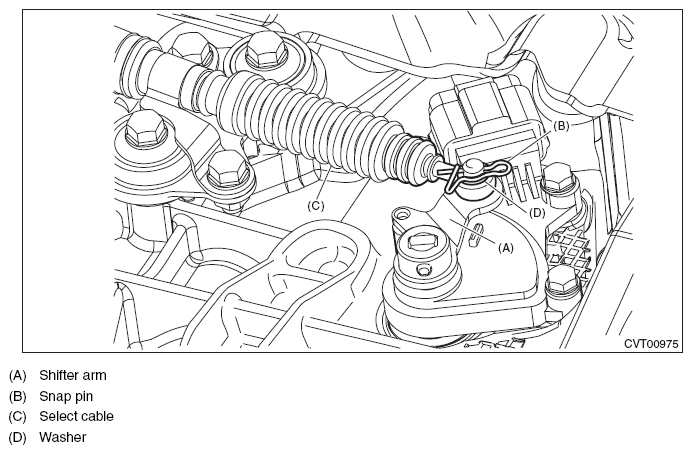

    Fig 4: Shifter Arm, Snap Pin, Select Cable And Washer
    G11572689Courtesy of SUBARU OF AMERICA, INC.
  9. Install the center exhaust pipe. <Ref. to INSTALLATION , Center Exhaust Pipe.>
  10. Lower the vehicle.
  11. Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  12. Check the inhibitor switch. <Ref. to INSPECTION , Inhibitor Switch.>
