Radiator & Radiator Fan

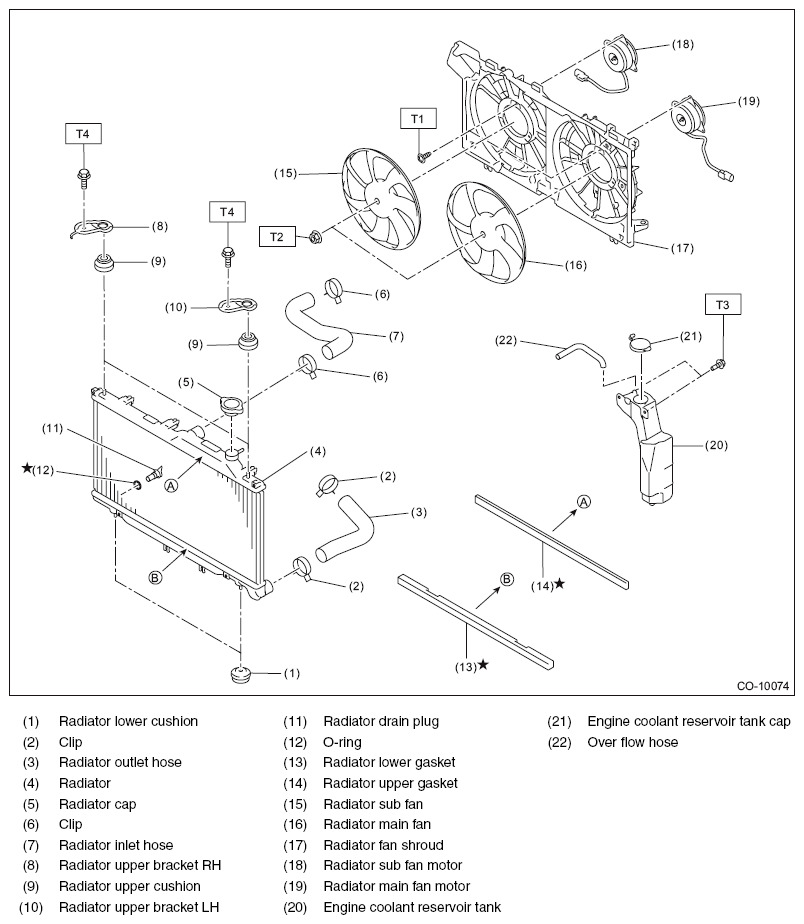

Fig 1: Exploded View Of Radiator And Radiator Fan Replacement Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: Nm (kgf-m, ft-lb)

T1: 3.9 (0.4, 2.9)

T2: 6.4 (0.7, 4.7)

T3: 7.5 (0.8, 5.5)

T4: 12 (1.2, 8.9)
