Relay and Fuse: Location

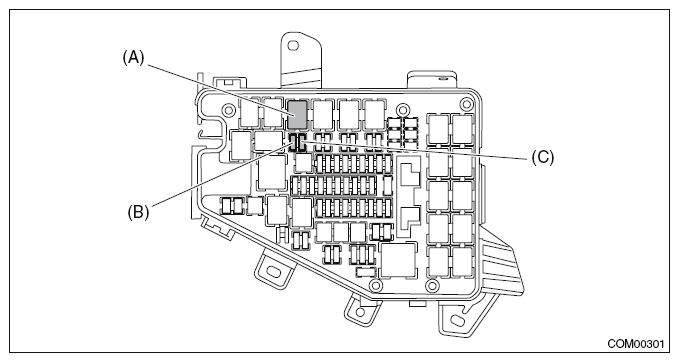

| Main fuse box (M/B) | Horn relay | (A) |
| Fuse 7.5 A (horn assembly - Hi) | (B) | |
| Fuse 7.5 A (horn assembly - Lo) | (C) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to
POWER SUPPLY CIRCUIT
| Main fuse box (M/B) | Horn relay | (A) |
| Fuse 7.5 A (horn assembly - Hi) | (B) | |
| Fuse 7.5 A (horn assembly - Lo) | (C) |
