Horn System: Horn: Removal

CAUTION: When removing the horn, do not remove the bumper face - front. Bracket connection portion of the bumper face may become damaged.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Lift up the vehicle.
Remove the clips, and turn over the mud guard - front.

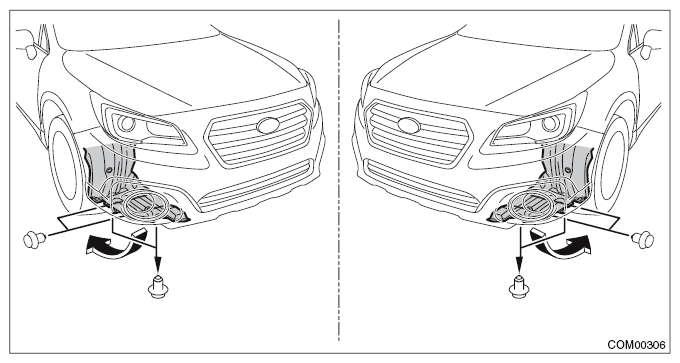

Fig 1: Turning Front Mud Guard
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- Hi side: Turn over the mud guard - front RH.
- Lo side: Turn over the mud guard - front LH.
Remove the horn assembly - Hi.
1. Disconnect the connector.
2. Remove the horn bracket mounting bolt, and remove the horn assembly - Hi.

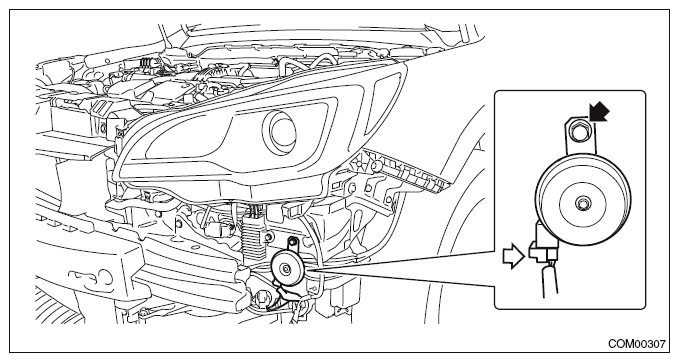

  Fig 2: Identifying Horn Bracket Mounting Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Remove the horn assembly - Lo.
1. Disconnect the connector.
2. Remove the horn bracket mounting bolt, and remove the horn assembly - Lo.
CAUTION: The resistor may become hot. Be careful not to burn yourself.

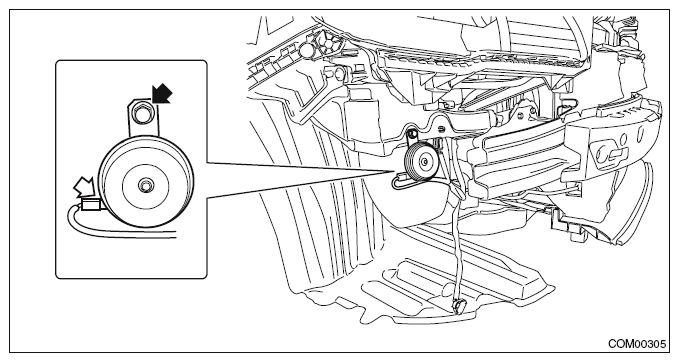

Fig 3: Identifying Horn Bracket Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
