Check Roll Connector
CAUTION:
If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. Ref. to
VDC SENSOR MIDPOINT SETTING MODE
, ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).
- Remove the roll connector. Ref. to REMOVAL , Roll Connector.
- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester

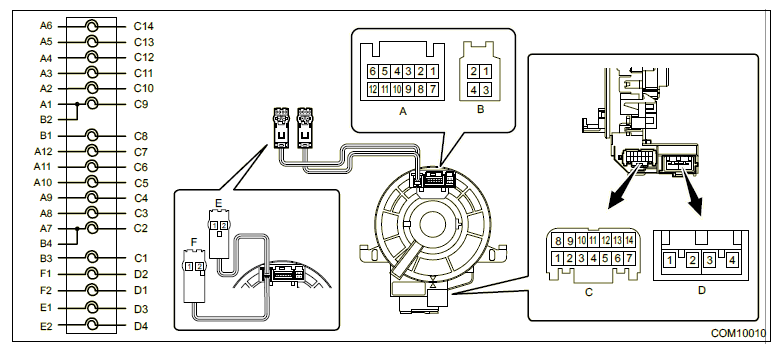

- Without steering heater
Courtesy of SUBARU OF AMERICA, INC.

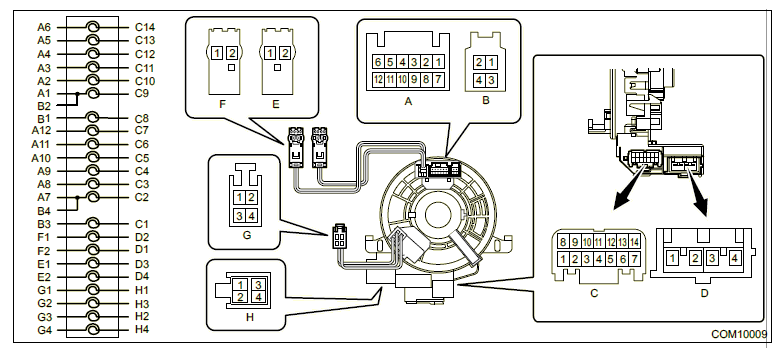

- With steering heater
Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Inspection conditions Standard A1 - C9 Always Less than 1 Ω - Replace the roll connector if the inspection result is not within the standard value.
