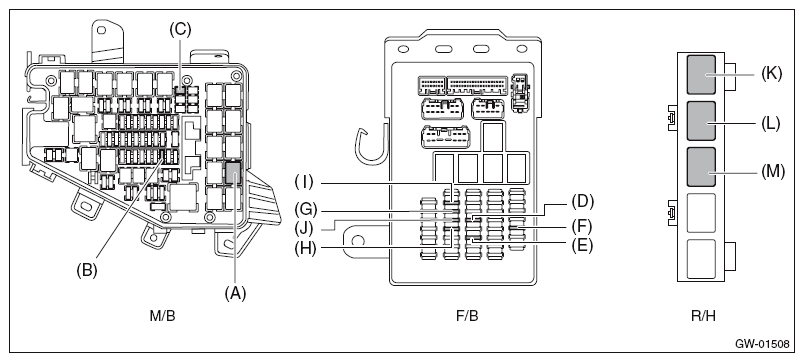

Relay and Fuse: Location
| Main fuse box (M/B) | Rear defogger relay | (A) |
| Fuse 25 A (rear defogger) | (B) | |
| Slow blow fuse (power window) | (C) | |
| Fuse & relay box (F/B) | Fuse 7.5 A (remote control mirror) | (D) |
| Fuse 15 A (mirror heater, wiper deicer) | (E) | |
| Fuse 20 A (power window main switch) | (F) | |
| Fuse 30 A (power window main switch) | (G) | |
| Fuse 20 A (power window sub switch) | (H) | |
| Fuse 20 A (power window sub switch) | (I) | |
| Fuse 20 A (power window sub switch) | (J) | |
| Relay holder (R/H) | Power window relay | (K) |
| Wiper deicer relay | (L) | |
| Mirror heater relay | (M) |
NOTE:
For other related fuses, proceed to the wiring diagram. Ref. to
POWER SUPPLY CIRCUIT
.
