Front Door Glass: Installation

Install the glass - front door partition.
Install the running channel - front door and the sash assembly - partition.
CAUTION: Check that the running channel - front door is securely fixed to the panel assembly - front door and to the sash assembly - partition.

Tightening torque:

Proceed to "COMPONENT" of "General Description". Ref. to FRONT DOOR GLASS , COMPONENT, General Description.

NOTE: Tighten the sash assembly - partition in the following order.

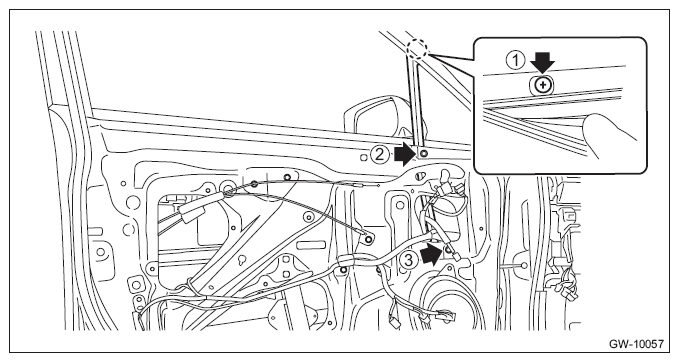

Fig 1: Sash Assembly Partition Screw Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the glass assembly - front door.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the front door inner pad.
Install the sealing cover - front door.
Install the trim panel - front door. Ref. to INSTALLATION , Door Trim.
Connect the ground terminal to battery sensor. Ref. to BATTERY
