Front Seat

Manual seat - driver's seat

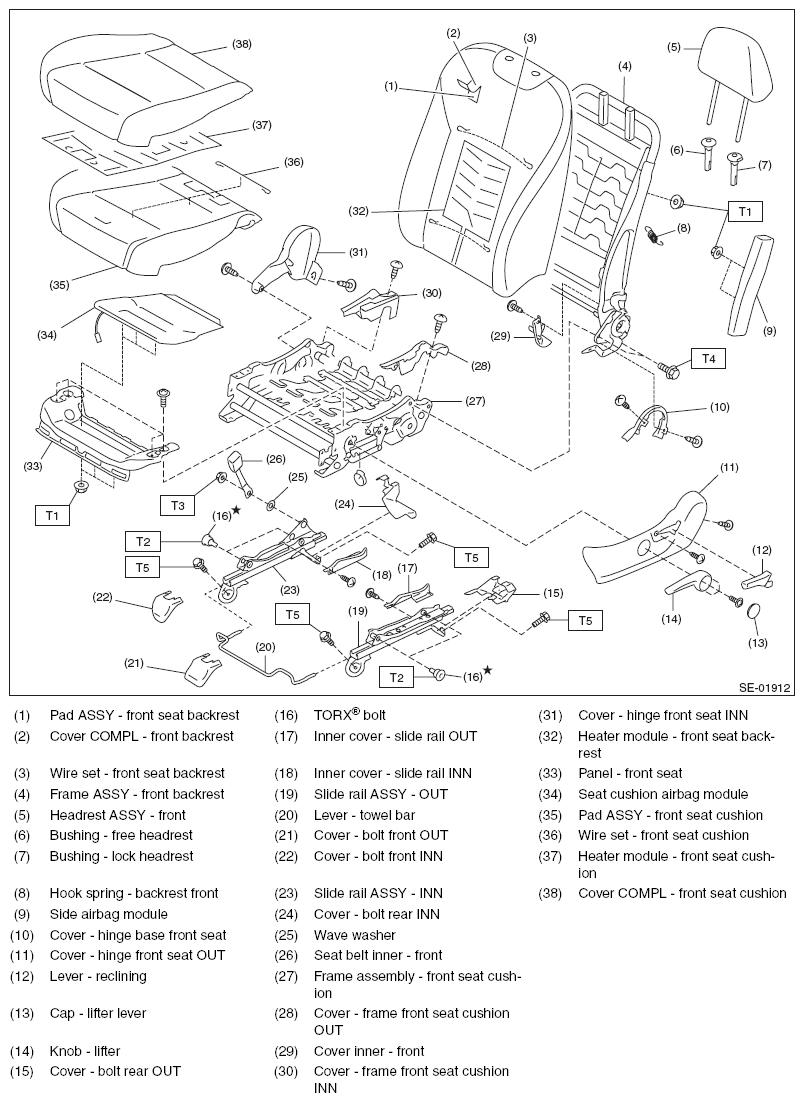

Fig 1: Exploded View Of Front Manual Seat (Driver's Seat)

G11565517

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

Manual seat - passenger's seat

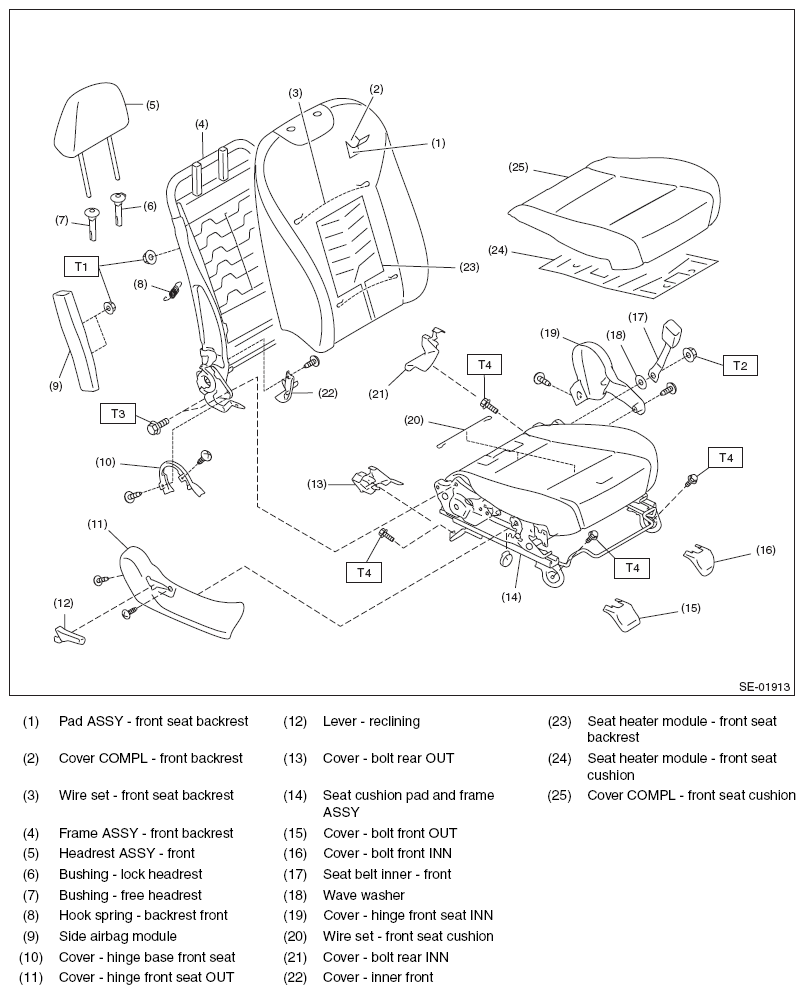

Fig 2: Exploded View Of Front Manual Seat (Passenger's Seat)

G11565518

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

Power seat - driver's seat

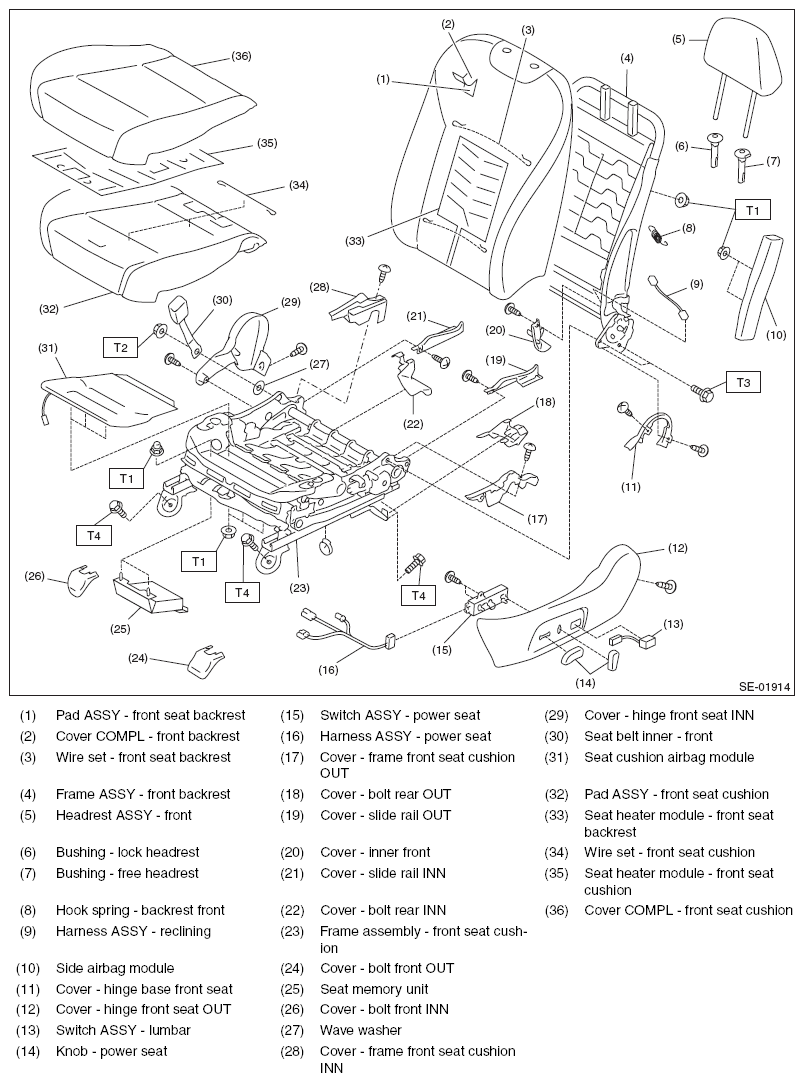

Fig 3: Exploded View Of Power Seat (Driver's Seat)

G11565519

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)

Power seat - passenger's seat

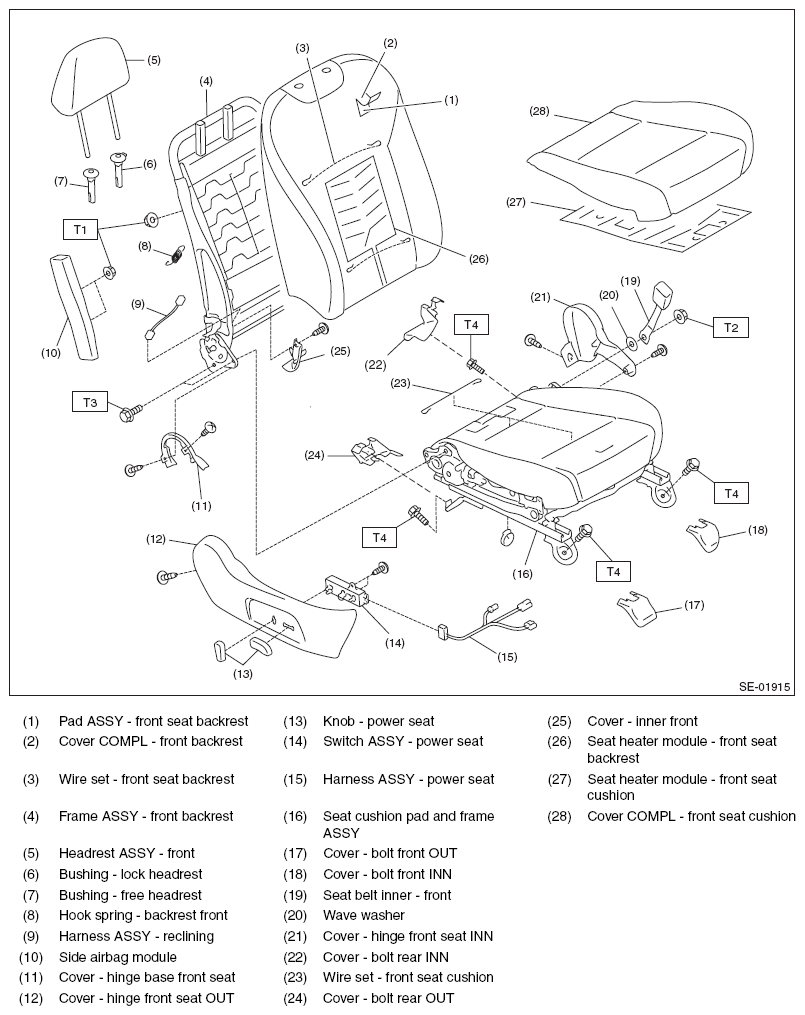

Fig 4: Exploded View Of Power Seat (Passenger's Seat)

G11565520

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
