Steering Lock Control Module: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". <Ref. to CAUTION , General Description.>
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  • If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. <Ref. to VDC SENSOR MIDPOINT SETTING MODE , ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).>
  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the cover assembly - instrument panel LWR driver. <Ref. to REMOVAL , Instrument Panel Lower Cover.>
  3. Remove the universal joint assembly - steering. <Ref. to REMOVAL , Universal Joint.>
    CAUTION: To prevent damage to the universal joint assembly - steering and improper steering effort, make sure to remove the universal joint assembly - steering.
  4. Remove the column assembly - steering. <Ref. to REMOVAL , Steering Column.>
  5. Remove the steering lock Control Module.
    1. Secure the column assembly - steering in a vise.
    2. Use the reverse tap or drill to remove the set bolt and remove the steering lock Control Module.
    CAUTION: Do not apply any impact to the set bolt by a chisel or punch. Doing so may damage the Control Module.

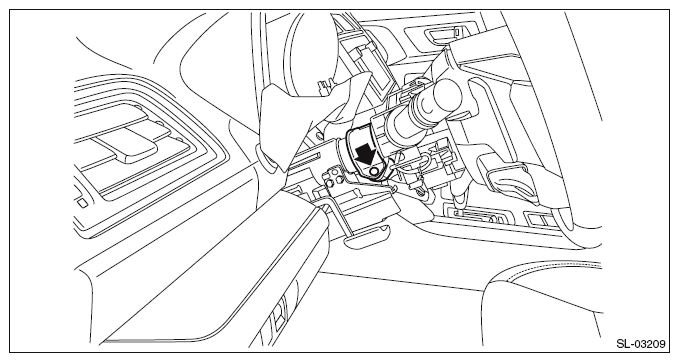

    Fig 1: Removing Steering Lock Control Module
    G10273000Courtesy of SUBARU OF AMERICA, INC.
