Keyless Access Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the combination meter assembly. <Ref. to REMOVAL , Combination Meter.>
  3. Remove the keyless access Control Module.
    1. Remove the reinforcement - combination meter.
      NOTE: For model with navigation and model with telematics, remove the GPS antenna assembly. <Ref. to REMOVAL , GPS Antenna.>
    2. Disconnect the connector and remove the bolt.

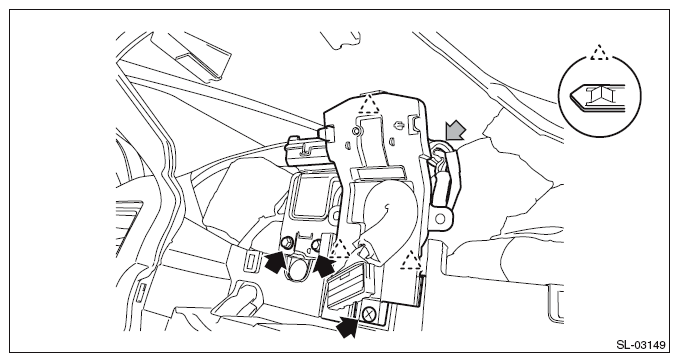

    Fig 1: Locating Keyless Access Control Module Bolt
    G10272999Courtesy of SUBARU OF AMERICA, INC.
