Front Inner Remote: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel - front door. <Ref. to FRONT DOOR , REMOVAL, Door Trim.>
  3. Remove the screw, and remove the remote assembly - door.

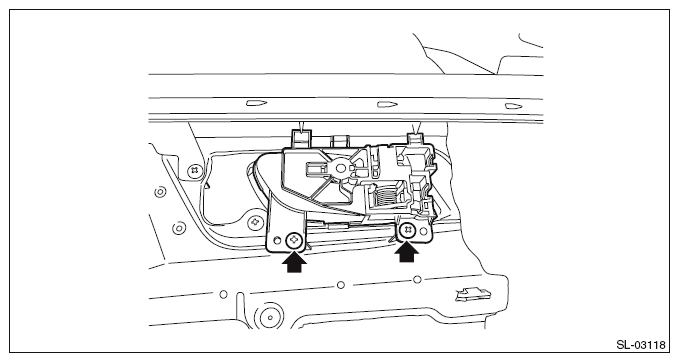

Fig 1: Locating Door Remote Assembly Screws
G10272906Courtesy of SUBARU OF AMERICA, INC.
