Transmission Control Module (TCM): Removal

1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Repair Contents.>
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the air intake duct. <Ref. to REMOVAL , Air Intake Duct.>
3. Remove the clip (A), and loosen the clamps (B) and (C).
   Fig 1: Air Intake Duct Clip And Clamps

   Courtesy of SUBARU OF AMERICA, INC.
4. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.
   Fig 2: Air Intake Boot

   Courtesy of SUBARU OF AMERICA, INC.
5. Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.

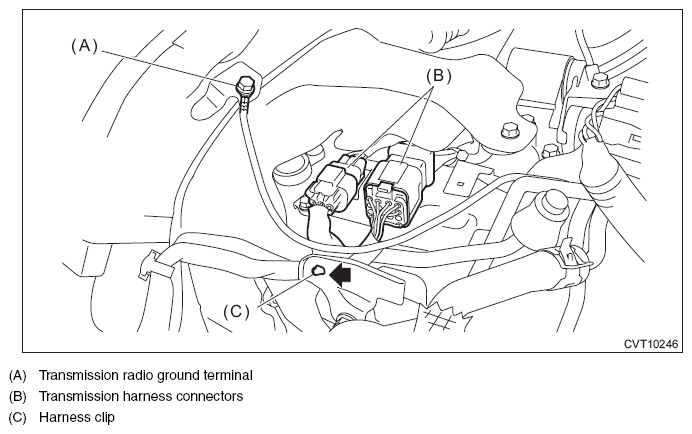

   Fig 3: Locating Harness Clip

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the transmission case cover.
   Fig 4: Locating Transmission Case Cover Bolts

   Courtesy of SUBARU OF AMERICA, INC.
7. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

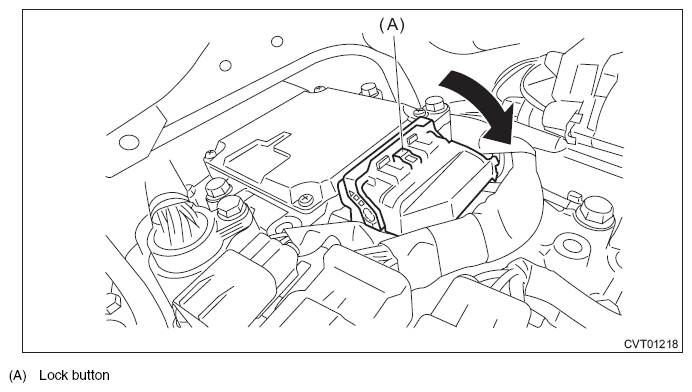

   Fig 5: Moving Lock Lever

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the TCM.

Fig 6: TCM With Bolts

Courtesy of SUBARU OF AMERICA, INC.
