Transmission Control Module (TCM): Installation

Install the TCM.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

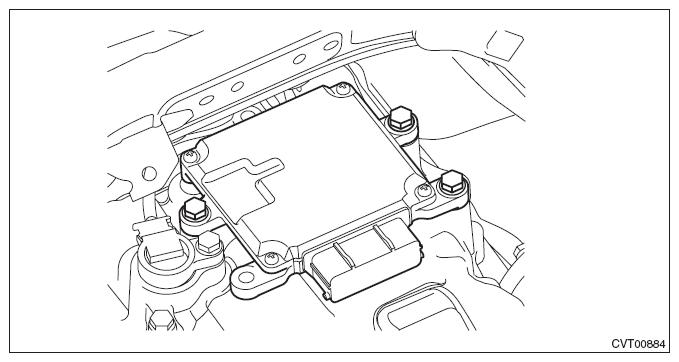

Fig 1: TCM With Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the harness connector to TCM.

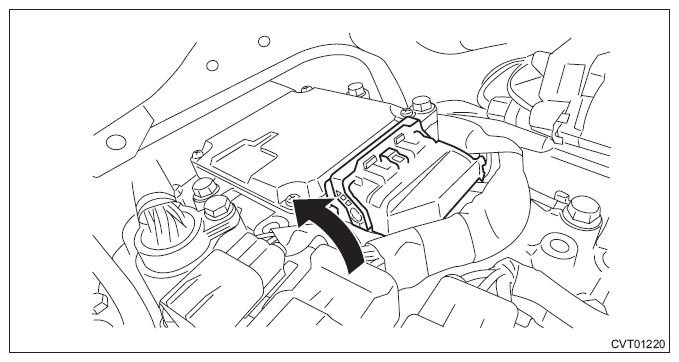

NOTE: Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

Fig 2: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Insert the transmission case cover (small) between transmission case cover (large) and transmission to install.
NOTE: When inserting, be careful that the insulator inside transmission case cover is not turned over.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

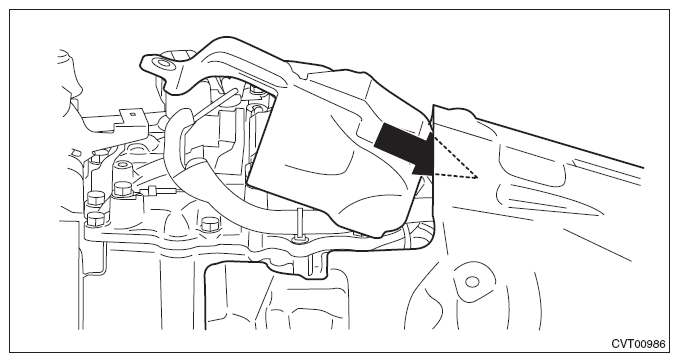

Fig 3: Inserting Transmission Case Cover (Small) Between Transmission Case Cover (Large)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Locating Transmission Case Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.

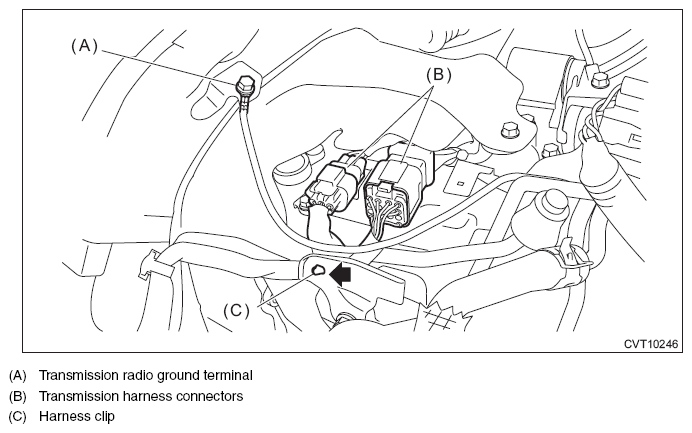

Install the harness clip, and connect the following transmission radio ground terminal and transmission harness connector.
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

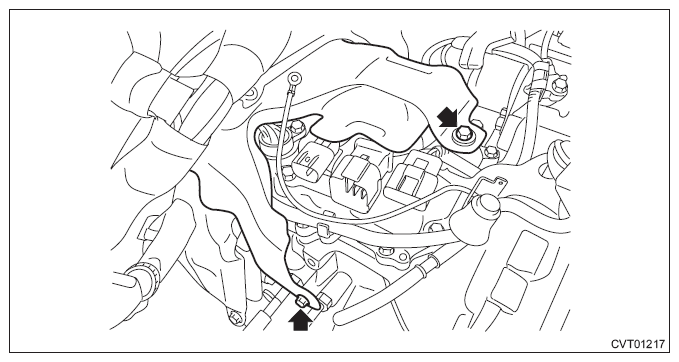

Fig 5: Locating Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot assembly. <Ref. to INSTALLATION , Air Intake Boot.>
Connect the ground terminal to battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Perform the operation of AT learning mode. <Ref. to LEARNING CONTROL .>
