Oil Pump Assembly

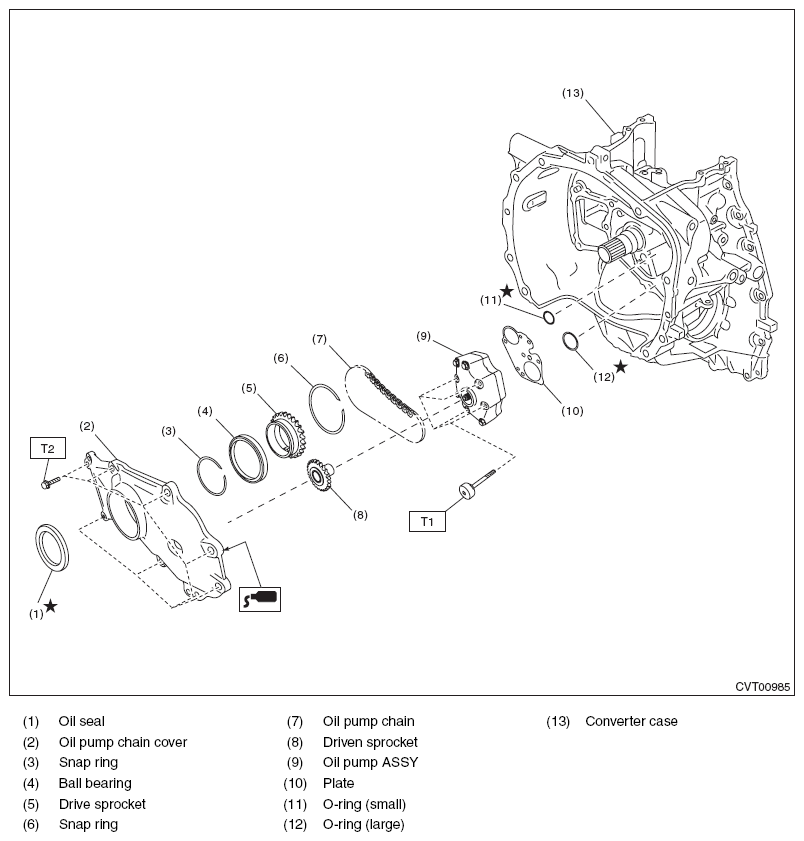

Fig 1: Oil Pump Assembly Components With Torque Specifications

G11572494

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 21 (2.1, 15.5)
