Differential Case Assembly

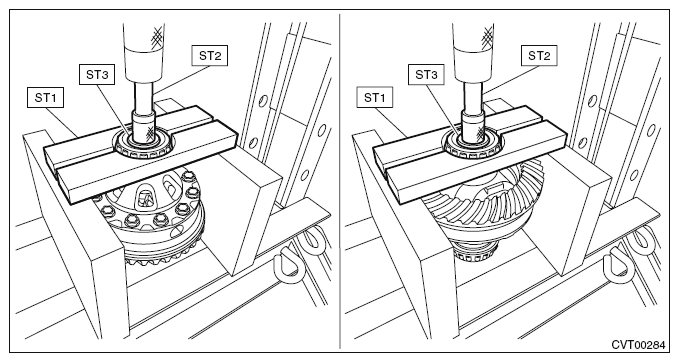

Remove the taper roller bearing using the ST.
ST1 498077000 REMOVER

ST2 899864100 REMOVER

ST3 398497701 SEAT

Fig 1: Removing Taper Roller Bearing Using Special Tools
Courtesy of SUBARU OF AMERICA, INC.

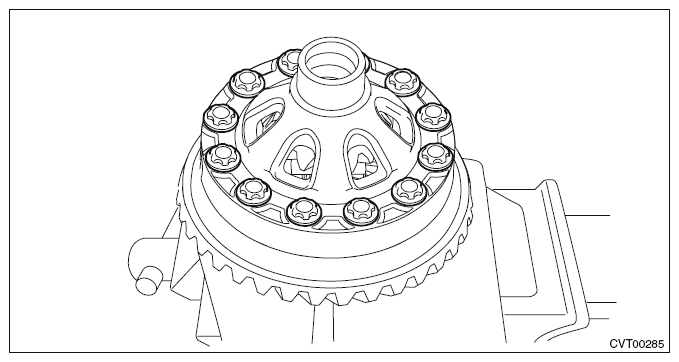

Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

Fig 2: Removing Hypoid Driven Gear Mounting Bolt Using Socket - E20 (18270KA020)
Courtesy of SUBARU OF AMERICA, INC.

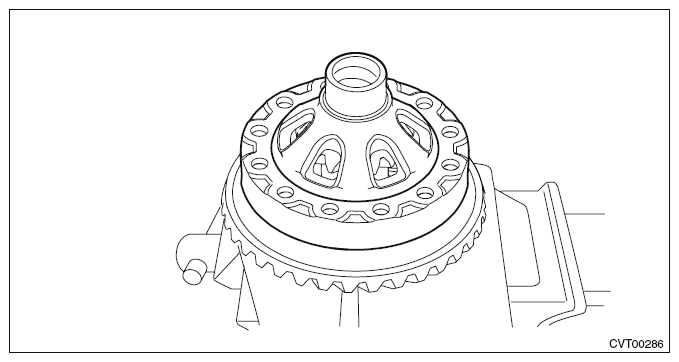

Remove the differential case (LH).

Fig 3: Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.

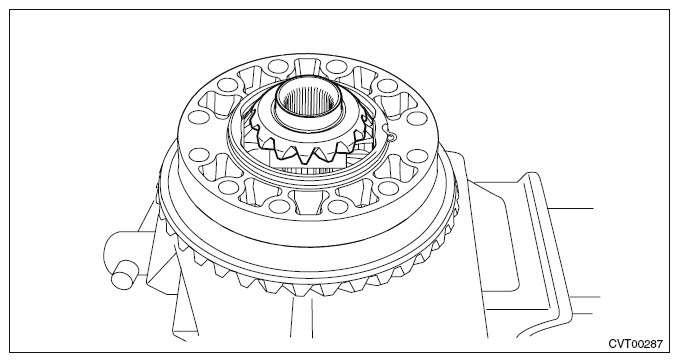

Remove the differential bevel gear and washer.

Fig 4: Differential Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.

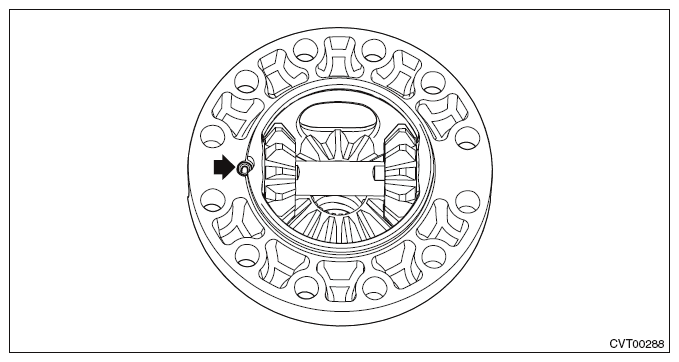

Remove the straight pin.

Fig 5: Locating Straight Pin
Courtesy of SUBARU OF AMERICA, INC.

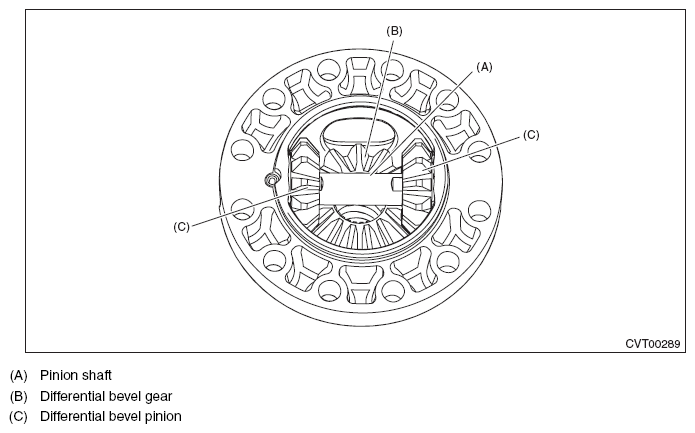

Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

Fig 6: Pinion Shaft, Differential Bevel Gear, And Differential Bevel Pinion

Courtesy of SUBARU OF AMERICA, INC.
