Electrical Specification
CAUTION:
Never remove the occupant detection control module, occupant detection sensor or seat frame because they are integrated into one unit.

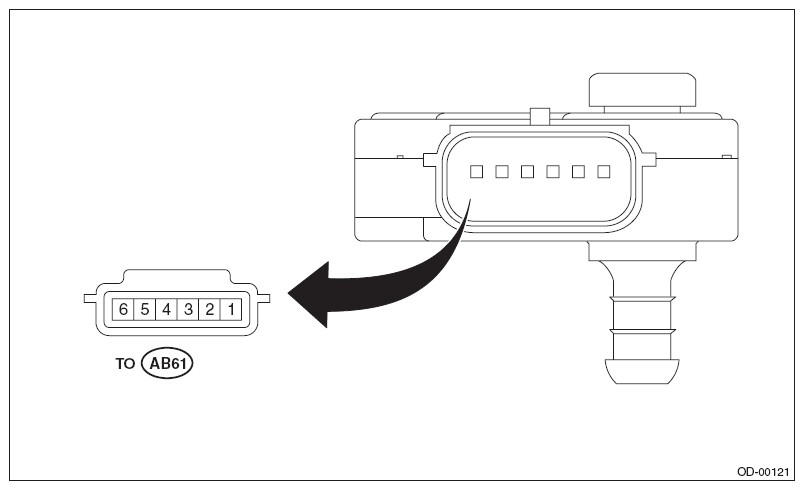

| Terminal No. | Description |
|---|---|
| 1 | Belt tension sensor output |
| 2 | Belt tension sensor power supply |
| 3 | GND |
| 4 | Seat belt buckle switch output |
| 5 | LIN communication line (airbag control module) |
| 6 | Ignition power supply |
