Power Amplifier

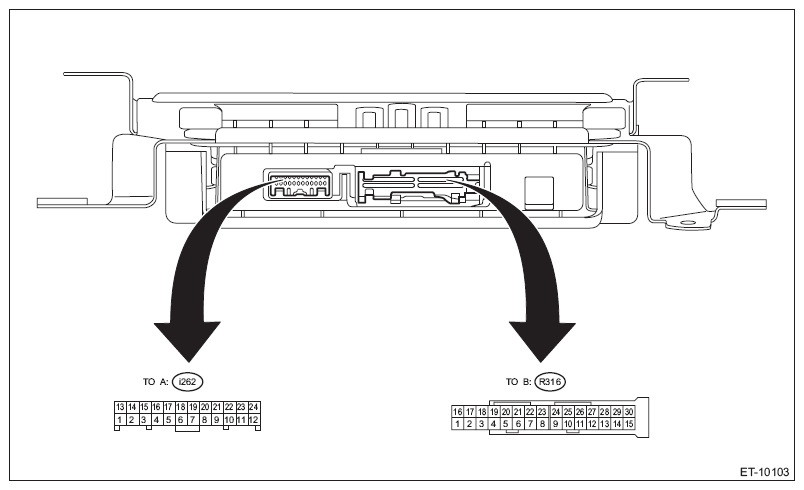

Fig 1: Power Amplifier Connector End View

G10309185

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.

Contents

Details

(B316) No. 1

+B

Battery power supply

(B316) No. 2

NC

Not connected

(B316) No. 3

NC

Not connected

(B316) No. 4

NC

Not connected

(B316) No. 5

NC

Not connected

(B316) No. 6

NC

Not connected

(B316) No. 7

NC

Not connected

(B316) No. 8

WF+

Sub woofer positive

(B316) No. 9

TWR+

Instrument panel right side speaker positive

(B316) No. 10

CTR+

Instrument panel center speaker positive

(B316) No. 11

FL+

Left side front door speaker positive

(B316) No. 12

FR+

Right side front door speaker positive

(B316) No. 13

TWL+

Instrument panel left side speaker positive

(B316) No. 14

RL+

Left side rear door speaker positive

(B316) No. 15

RR+

Right side rear door speaker positive

(B316) No. 16

+B2

Battery power supply

(B316) No. 17

NC

Not connected

(B316) No. 18

GND2

Ground

(B316) No. 19

NC

Not connected

(B316) No. 20

NC

Not connected

(B316) No. 21

NC

Not connected

(B316) No. 22

NC

Not connected

(B316) No. 23

WF-

Sub woofer negative

(B316) No. 24

TWR-

Instrument panel right side speaker negative

(B316) No. 25

CTR-

Instrument panel center speaker negative

(B316) No. 26

FL-

Left side front door speaker negative

(B316) No. 25

FR-

Right side front door speaker negative

(B316) No. 28

TWL-

Instrument panel left side speaker negative

(B316) No. 29

RL-

Left side rear door speaker negative

(B316) No. 30

RR-

Right side rear door speaker negative

(i262) No. 1

MUTE

MUTE

(i262) No. 2

L-

Left channel negative input

(i262) No. 3

L+

Left channel positive input

(i262) No. 4

R-

Right channel negative input

(i262) No. 5

R+

Right channel positive input

(i262) No. 6

SLD

Shield

(i262) No. 7

TX-

Transmitter negative

(i262) No. 8

TX+

Transmitter positive

(i262) No. 9

EQ

CHG Equalizer select (change)⁽¹⁾

(i262) No. 10

L/RHD-SEL

Equalizer select (change)⁽²⁾

(i262) No. 11

SPEED

Vehicle speed pulse

(i262) No. 12

ACC

ACC power supply

(i262) No. 13

NC

Not connected

(i262) No. 14

II1-

Interrupt information negative

(i262) No. 15

II1+

Interrupt information positive

(i262) No. 16

NC

Not connected

(i262) No. 17

NC

Not connected

(i262) No. 18

SLD2

Shield

(i262) No. 19

NC

Not connected

(i262) No. 20

NC

Not connected

(i262) No. 21

NMUTE

Navigation mute (not used)

(i262) No. 22

NC

Not connected

(i262) No. 23

NC

Not connected

(i262) No. 24

TMUTE

Telephone mute (not used)

NOTE:

⁽¹⁾	Different audio tunings are used on SDN model and OUTBACK model. Therefore, connection is selectively established as follows: For the sedan model, connection is established to GND. For the OUTBACK model, connection is not established.

⁽²⁾	Different audio tunings are used on RHD model and LHD model. Therefore, connection is selectively established as follows: For the RHD model, connection is established to GND. For the LHD model, connection is not established.
