SUBARU Eyesight System (Driver Assist) (Diagnostics)
>>
Control Module I/O Signal
>>
System Block Diagram
System Block Diagram
Main signals used between stereo camera and relevant control module

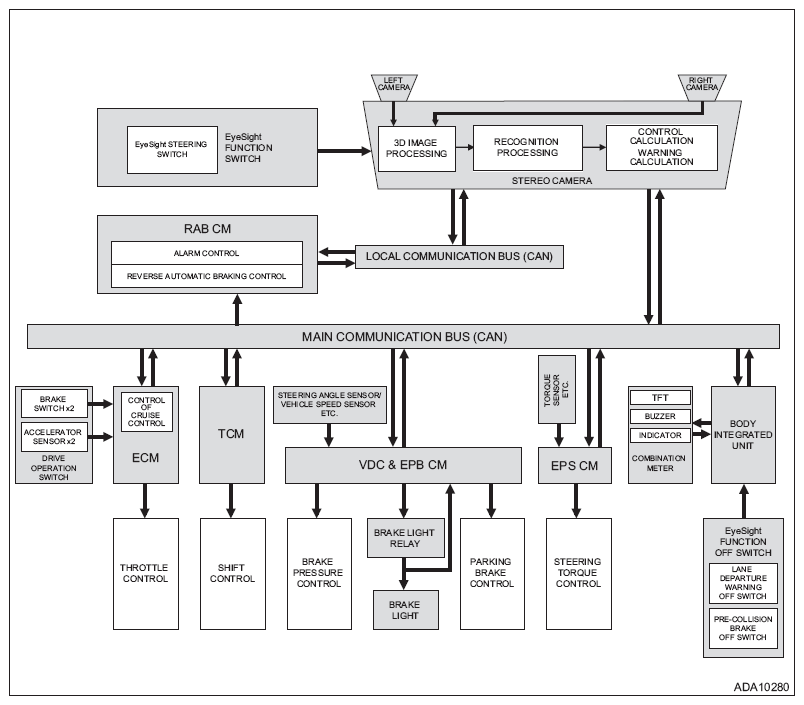

Fig 1: Stereo Camera And Relevant Control Module System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
