Steering Column: Removal

CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  1. Adjust the tilt position of the steering column to the neutral position and the telescopic position to the longest position.
    CAUTION: Always place the tilt lever to the lock position after the steering column is adjusted.
  2. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION.
  3. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL .
  4. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL .
  5. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>Driver's Airbag Module>REMOVAL .
  6. Remove the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Steering Wheel>REMOVAL .
  7. Remove the cover assembly - column.
    1. Release the clips, and remove the cover assembly - steering UPR.
    2. Remove the screws.

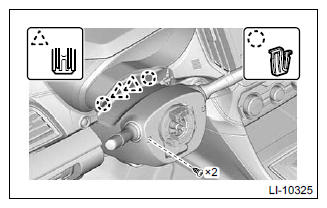

      Fig 1: Removing Upper Steering Cover Assembly Clips
      G11245591Courtesy of SUBARU OF AMERICA, INC.
    3. Release the claw, and remove the cover assembly - column LWR as shown in the figure.
      Fig 2: Identifying Power Steering Cover Assembly Claws
      G11245592Courtesy of SUBARU OF AMERICA, INC.
      NOTE:
      • Release the claws on RH side in the same procedure as on the LH side.
      • For model with keyless access with push button start, remove the cap - key cylinder.
    4. Release the claw, and remove the cover assembly - column UPR as shown in the figure.
      Fig 3: Identifying Power Steering Upper Column Cover Assembly Claws
      G11245593Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the switch assembly - combination turn dimmer.
    1. Disconnect the connector.
    2. Using pliers, loosen the clamp.
    3. With the clamp loosened, release the claw using a flat tip screwdriver wrapped with a protection tape, and remove the switch assembly - combination turn dimmer.
    CAUTION: Do not pry off forcibly. Otherwise, the claws may be damaged.
    Fig 4: Removing Combination Turn Dimmer Switch Assembly Using Flat Tip Screwdriver
    G11245594Courtesy of SUBARU OF AMERICA, INC.
  9. Remove all connectors from the column assembly - steering.
  10. Remove the universal joint assembly - steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>Universal Joint>REMOVAL .
    CAUTION: To prevent damage to the universal joint assembly - steering and improper steering effort, make sure to remove the universal joint assembly - steering.
  11. Remove the nut under the beam COMPL - steering securing the column assembly - steering.
    Fig 5: Locating Steering Column Assembly Beam Nuts
    G11245595Courtesy of SUBARU OF AMERICA, INC.
  12. Pull out the column assembly - steering from the hole on toe board.
    CAUTION: Do not loosen the tilt lever when the column assembly - steering is not secured to the vehicle.
  13. Remove the ignition key lock. Ref. to SECURITY AND LOCKS>Ignition Key Lock>REPLACEMENT .
