Grip Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the button assembly _ AT.

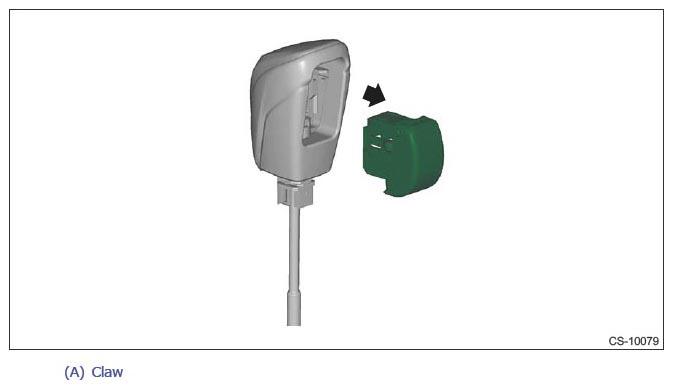

    Fig 1: Removing AT Button Assembly
    G11255315Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rod COMPL.
