AT Shift Lock Control System
>>
Wiring Diagram
>>
Model With Push Button Ignition Switch
Model With Push Button Ignition Switch
WARNING:
This page is about a different variant/trim than selected.

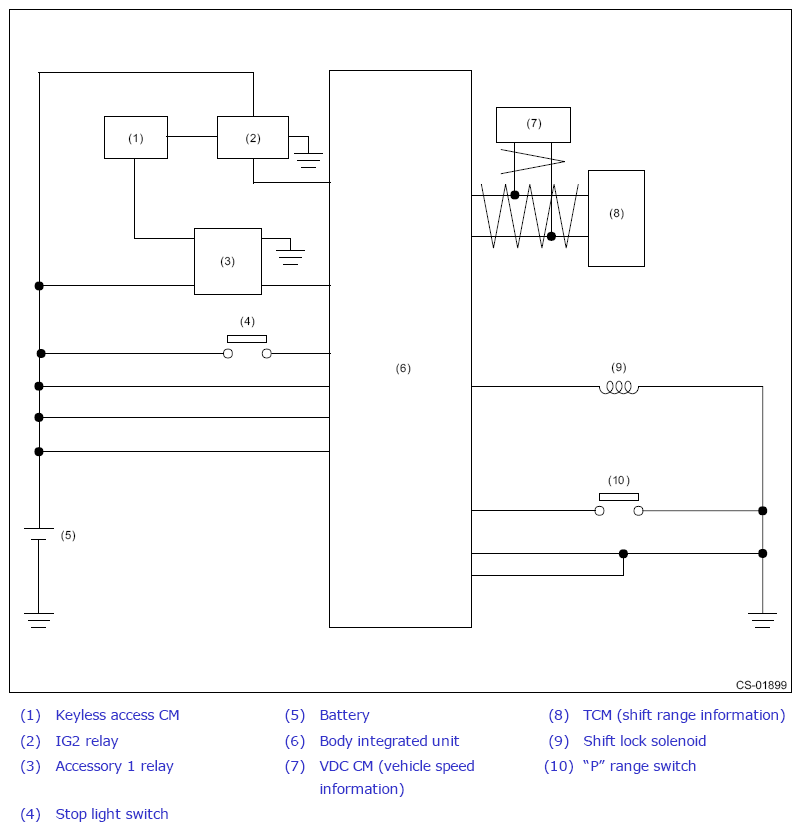

Fig 1: AT Shift Lock Control System Wiring Diagram - Model With Push Button Ignition Switch
Courtesy of SUBARU OF AMERICA, INC.
