Components With Torque Specifications: Starter

• CVT model

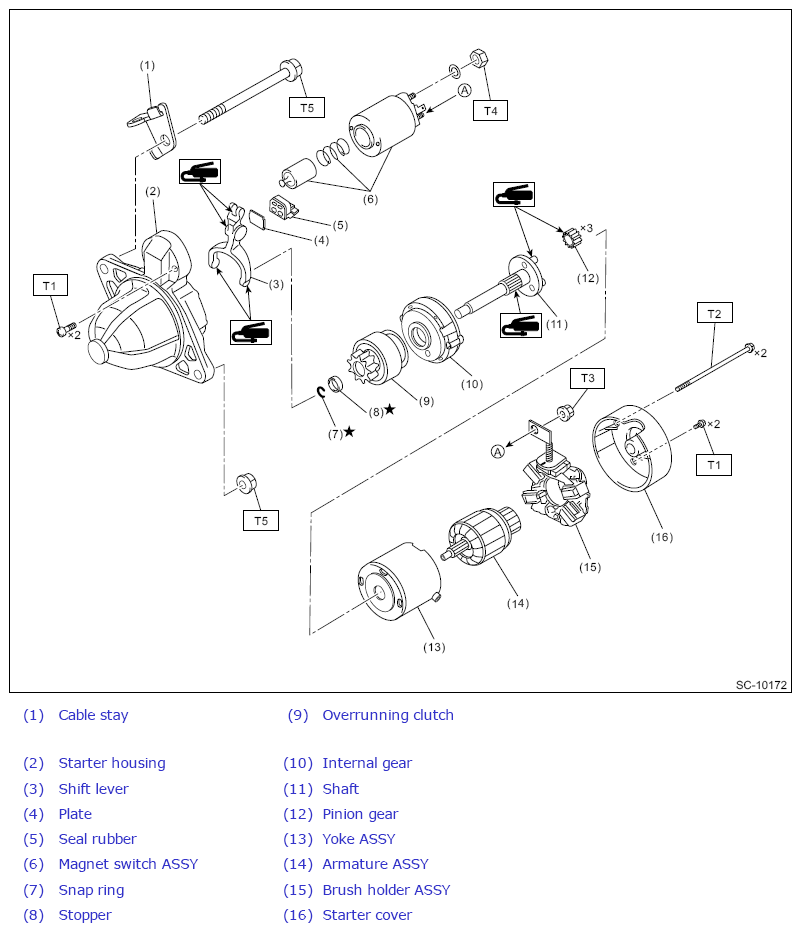

  Fig 1: Exploded View Of Starter (CVT Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 3.4 (0.3, 2.5)

  T2: 3.5 (0.4, 2.6)

  T3: 10.7 (1.1, 7.9)

  T4: 11 (1.1, 8.1)

  T5: 50 (5.1, 36.9)

• MT model

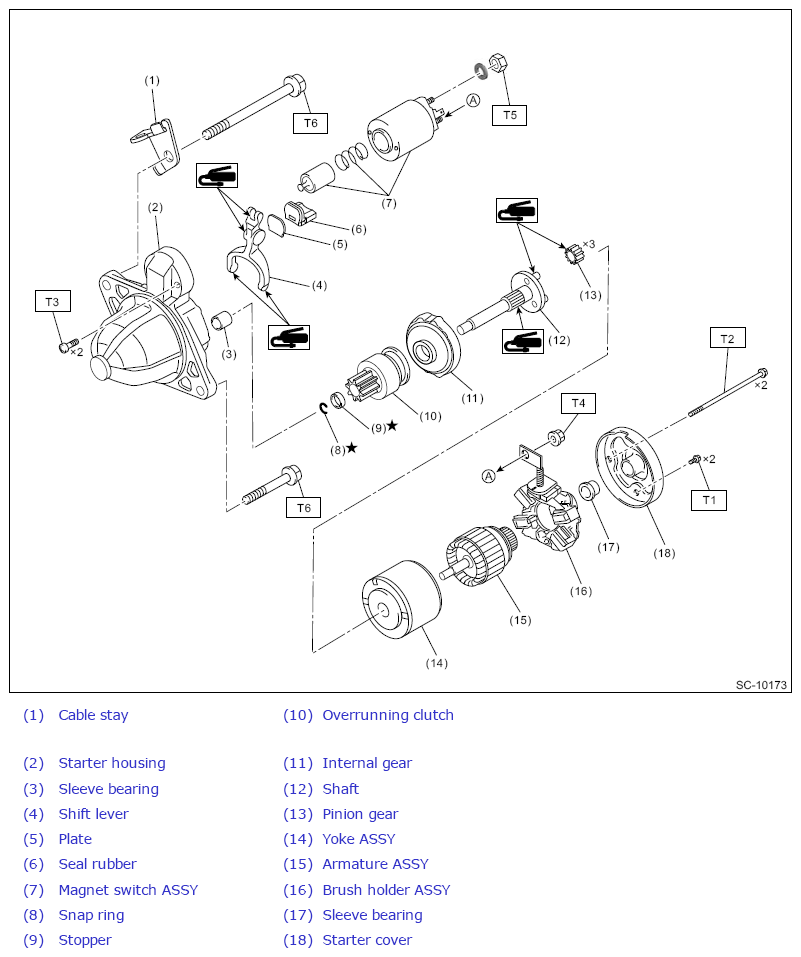

Fig 2: Exploded View Of Starter (MT Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 1.4 (0.1, 1.0)

T2: 6 (0.6, 4.4)

T3: 7.5 (0.8, 5.5)

T4: 10 (1.0, 7.4)

T5: 11 (1.1, 8.1)

T6: 50 (5.1, 36.9)
