Battery Sensor: Removal

  1. Disconnect the connector and ground terminal.

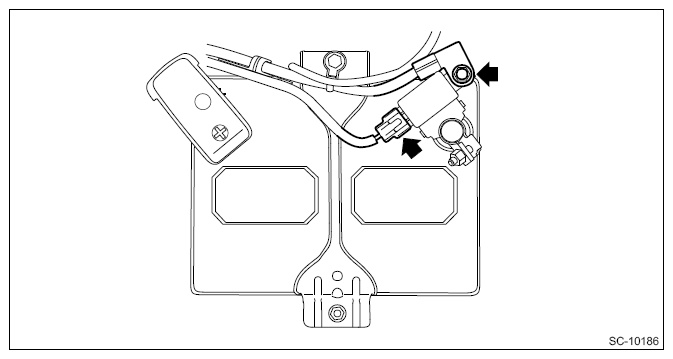

    Fig 1: Locating Battery Sensor Connector And Ground Terminal
    G11253760Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the battery sensor.

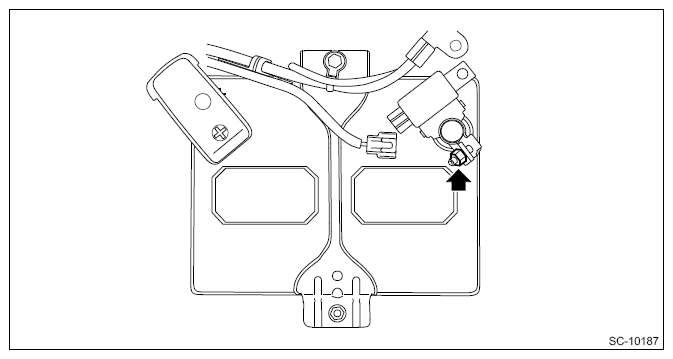

Fig 2: Locating Battery Sensor Nut
G11253761Courtesy of SUBARU OF AMERICA, INC.
