Inhibitor Switch: Installation

Install the inhibitor switch to the transmission case temporarily.

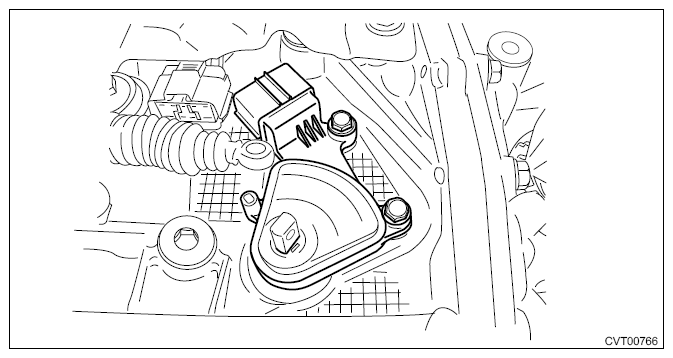

Fig 1: Identifying Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor harness connector.
Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

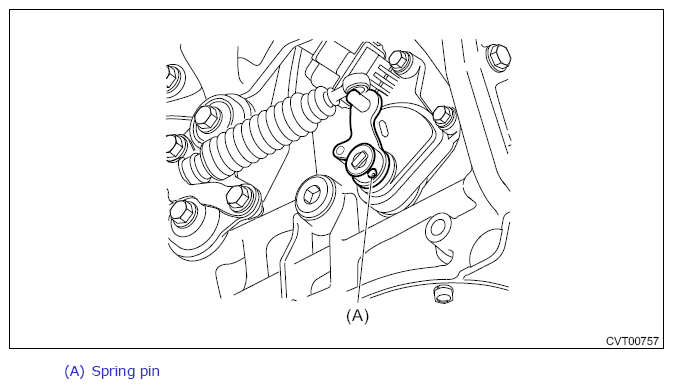

Fig 2: Identifying Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Shift the shifter arm to "N" range.
Install the ST vertically in the cutout of shifter arm and the hole of switch body.
Preparation tool:

ST: STOPPER PIN (499267300)

Fig 3: Inserting ST Into Holes Of Shifter Arm And Switch Body
Courtesy of SUBARU OF AMERICA, INC.
Tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
Install the select cable to the shifter arm.
Install the select cable, washer and snap pin.
CAUTION: Do not apply excessive load while holding the part (A).

Fig 4: Measuring Shifter Arm Length
Courtesy of SUBARU OF AMERICA, INC.

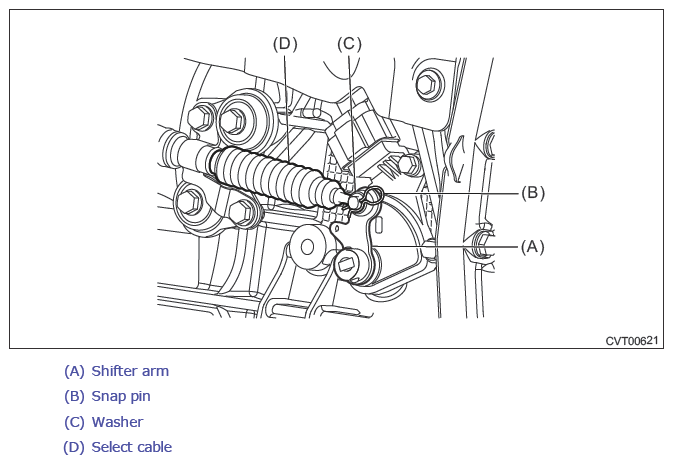

Fig 5: Identifying Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the front exhaust pipe. Ref. to EXHAUST (H4DO)>Front Exhaust Pipe>INSTALLATION .
Lower the vehicle.
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
Check the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>Inhibitor Switch>INSPECTION .
