Differential Case Assembly

Remove the taper roller bearing using ST1, ST2 and ST3.
Preparation tool:

ST1: REMOVER (498077000)

ST2: REMOVER (899864100)

ST3: SEAT (398497701)

Fig 1: Removing Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the spring pin.
Preparation tool:

ST: STRAIGHT PIN REMOVER (899904100)

Fig 2: Removing Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

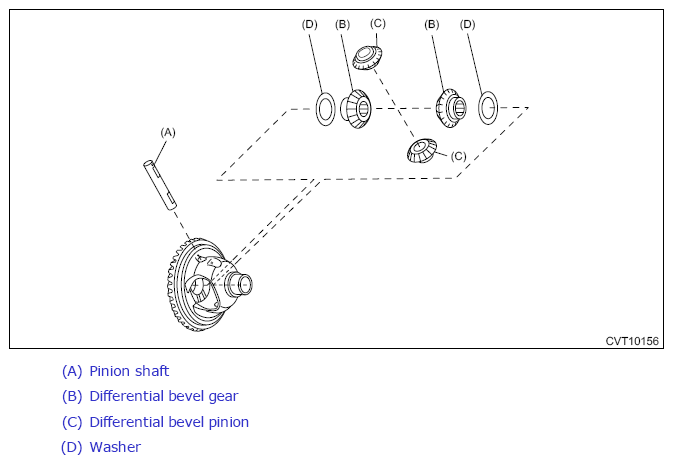

Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and washer.

Fig 3: Removing Differential Bevel Pinion, Differential Bevel Gear And Washer

Courtesy of SUBARU OF AMERICA, INC.
